Global Industry-oriented Solutions For Precision Metal Cylinder Components
Prime---Your Trusted Factory Since 1993
Custom Metal Cylinder Components
PRIME provides precision-manufactured metal cylinder parts tailored to your hydraulic, pneumatic, and mechanical system needs. From tubes to end caps, we deliver reliable solutions for demanding environments.

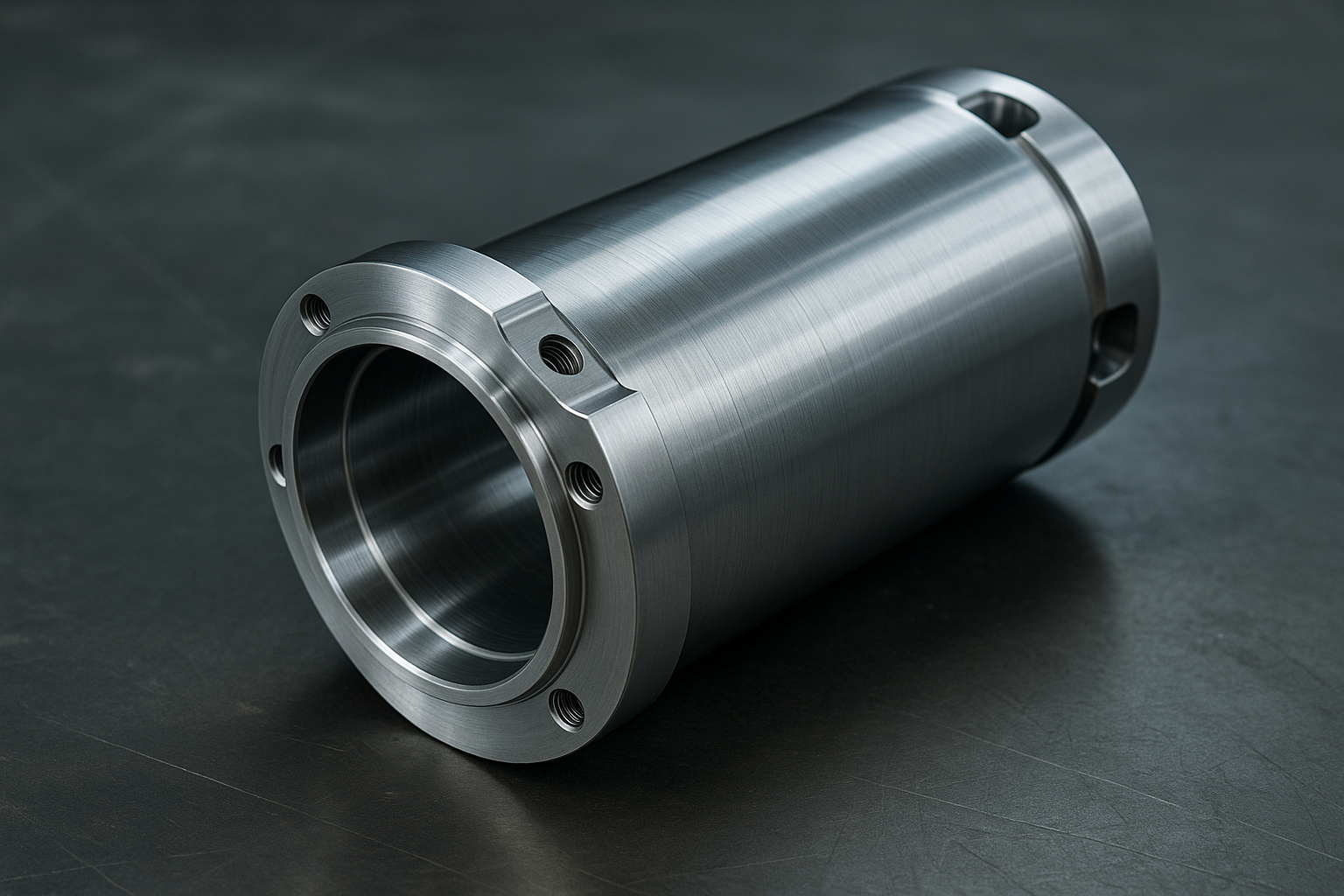

Cylinder Barrels
Seamless steel or aluminum cylinder tubes with precise ID tolerances, honed or chrome-plated for superior wear resistance and low friction.

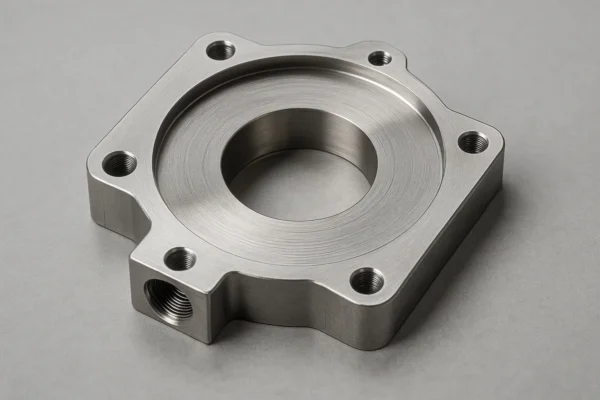

Cylinder End Caps
Custom-forged or machined end caps designed to house seals, mountings, and connections, ensuring structural integrity under pressure.

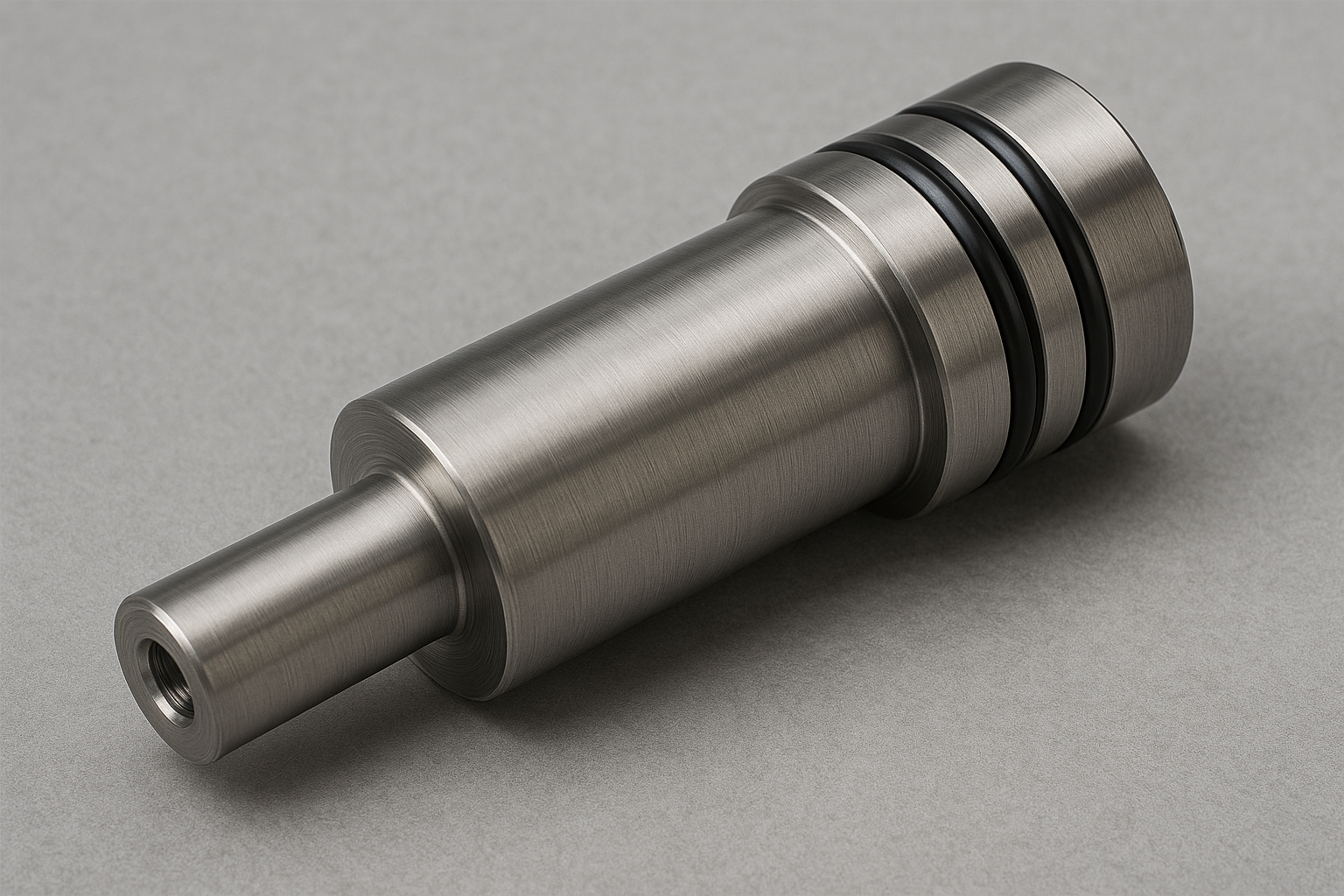

Cylinder Pistons
Precision pistons machined from steel or aluminum alloys, designed to transfer force efficiently and accommodate seal grooves and wear bands.

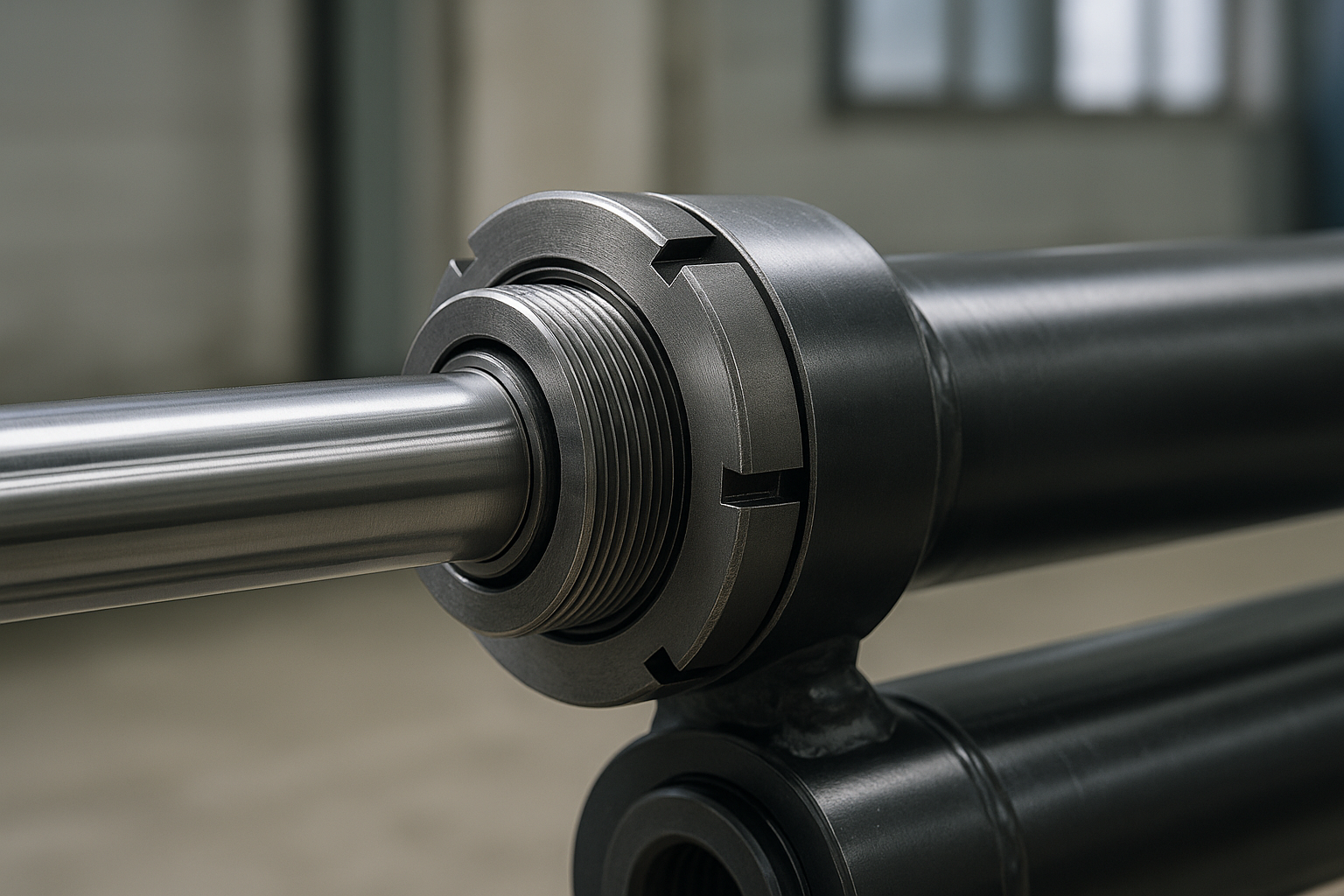

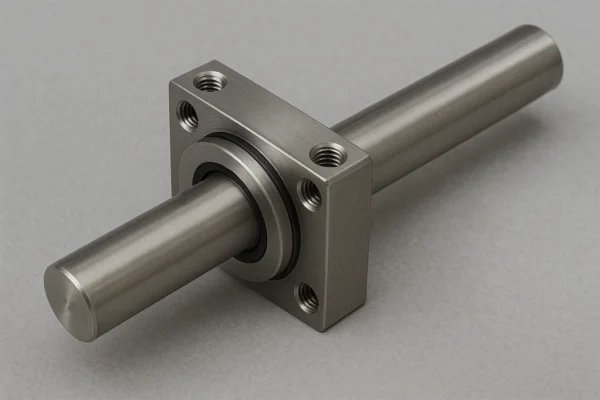

Rod Glands
Rod glands provide precise sealing and guidance for piston rods, ensuring leak-free operation and enhanced durability under dynamic loads.

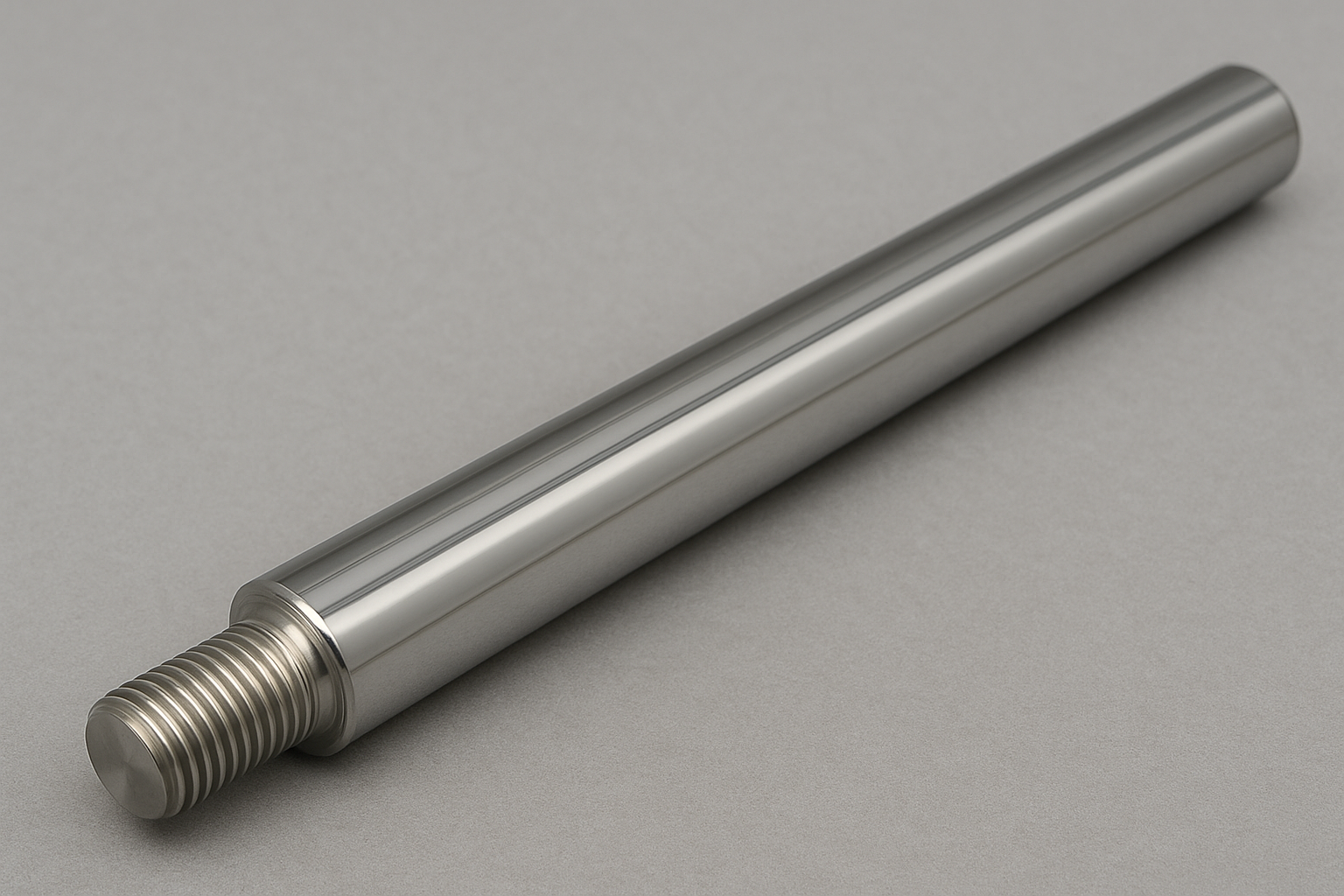

Piston Rods
Ground and polished rods with chrome or nickel plating for corrosion resistance and smooth actuation, ideal for hydraulic and pneumatic cylinders.

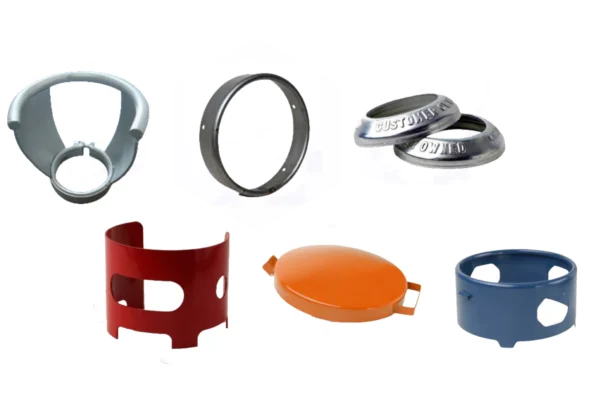

Custom Cylinder Parts
Tailored manufacturing based on customer drawings and application requirements — from prototype to mass production with tight tolerances.
Why Choose PRIME: Excellence in Custom Cylinder Components
Choosing a reliable partner for custom hydraulic or pneumatic cylinder components is crucial for equipment durability, precision performance, and operational safety. At PRIME, we combine decades of experience, precision CNC machining, strict quality systems, and fast global fulfillment to deliver high-performance cylinder parts tailored to your needs.
- 30+ Years of Manufacturing Expertise: Since 1993, we’ve been supplying OEM clients with custom cylinder heads, rods, pistons, end caps, and glands—ensuring seamless integration into critical systems.
- Precision Machining & Surface Finishing: Every component is CNC-machined to tight tolerances and finished to meet your sealing and durability standards—chrome plating, nitriding, polishing, and more.
- Scalable Production Lines: With 10+ modern production lines, we efficiently handle small batch customization or large-volume orders with consistent quality and on-time delivery.
- Global Support & Fast Shipping: We export to North America, Europe, the Middle East, and Australia, with expertise in international logistics and documentation.
- Full Cylinder Assembly Capabilities: From piston rods and seals to end caps and mounting hardware, we deliver integrated solutions to simplify your supply chain.
Need Custom Cylinder Components Built to Last?
Upload your technical drawings and specifications via our secure portal. Our engineering team will conduct a manufacturability analysis and provide a competitive quote within 24 hours.
Let’s power your cylinders with precision and reliability—together.
Address Your Concerns: FAQ about Custom Cylinder Components
To support informed decision-making and streamline collaboration, we’ve compiled frequently asked questions about custom hydraulic and pneumatic cylinder components. These answers address common technical and logistical concerns faced by engineers, procurement teams, and OEMs worldwide.
What cylinder components can Prime manufacture?
Prime provides precision-machined pistons, piston rods, gland nuts, cylinder heads, end caps, sealing housings, and flanges. We support a wide range of hydraulic and pneumatic cylinder applications across construction, industrial automation, and agricultural sectors.
What surface treatments are available for piston rods?
We offer hard chrome plating, nickel plating, nitriding, black oxide, and polishing to enhance wear resistance, corrosion protection, and sealing compatibility of piston rods and internal sliding parts.
How does PRIME control tolerances for hydraulic parts?
We achieve tight tolerances down to ±0.01 mm using high-precision CNC turning and grinding. Cylindricity, coaxiality, and surface roughness are measured with CMMs and laser inspection systems to ensure seal performance and fit precision.
Can you supply assembled or sub-assembled cylinder units?
Yes. We provide full cylinder assemblies or kits with rods, seals, pistons, glands, and packaging. Our team also supports sub-assemblies tailored to your BOM, improving efficiency for OEM integration.
What materials are available for cylinder parts?
We commonly use carbon steel (CK45, 20MnV6), stainless steel (304, 316), aluminum alloy (6061-T6), ductile iron, and brass. Material certifications and traceability documents can be provided upon request.
Do you support international shipping and documentation?
Absolutely. We export cylinder parts globally and provide necessary customs paperwork including CO, Form A, Form E, and HS code labeling. All products are packaged with anti-rust protection, foam, and reinforced wooden crates to ensure safe delivery.

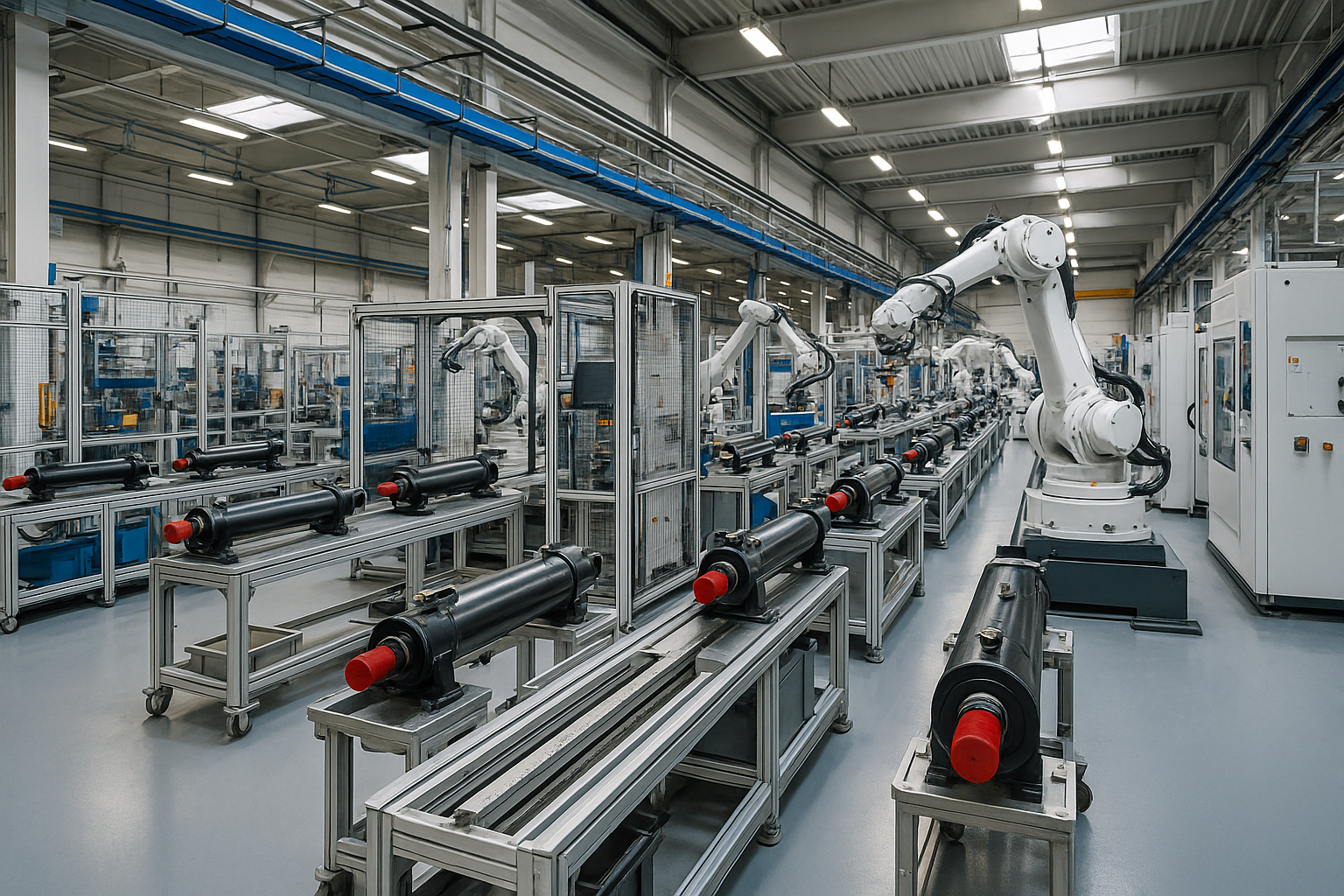

Our Factory Insight
- Ⅰ：What Are Custom Metal Cylinder Components?
- Ⅱ：Explore Custom Cylinder Components and Our Manufacturing Process
- Ⅲ：Custom Cylinder Component Materials: Performance Starts Here
- Ⅳ：Surface Treatments: Boost Cylinder Component Performance
- Ⅴ：Tooling & Die Engineering for Critical Cylinder Parts
- Ⅵ：PRIME Quality Assurance for Cylinder Components
- Ⅶ：Common Cylinder Collar Issues & PRIME’s Engineering Solutions
- Ⅷ：Diverse Applications: The Value of PRIME Cylinder Components
- Ⅸ：How to Choose the Right Cylinder Component Supplier
- Ⅹ：Design for Manufacturability (DFM) in Custom Cylinder Components
- Ⅺ：Custom Cylinder Components: Comparing Key Design Approaches
- Ⅻ：Global Supply Chain & Logistics for Custom Cylinder Components
- XIII：Prime R&D and Innovation: Advancing Cylinder Component Engineering
- XIV：Value-Added Services: Integrated Cylinder Component Solutions
- XV: More Information On Custom Cylinder Components
Ⅰ：What Are Custom Metal Cylinder Components?
Custom metal cylinder components are precision-machined parts used in hydraulic and pneumatic systems to convert fluid or air pressure into linear motion. These components include items such as pistons, piston rods, gland nuts, end caps, sealing housings, and cylinder tubes—each tailored to meet specific load, speed, and environmental requirements.
These parts are typically produced through CNC turning, milling, grinding, and surface treatments such as chrome plating or nitriding. With tight tolerances and high durability, custom cylinder components are essential in applications ranging from construction machinery and factory automation to aerospace actuators and agricultural equipment.
Key Characteristics of PRIME Cylinder Components
• Precision Tolerance Control
We maintain tight machining tolerances down to ±0.01 mm for sliding and sealing interfaces, ensuring optimal sealing performance and low-friction movement under pressure.
• Superior Surface Finishes
Our piston rods and inner bores are finished with Ra 0.2–0.4 μm roughness using grinding and polishing to extend seal life and reduce wear in demanding environments.
• Custom Geometry Options
We support stepped shafts, hollow or solid pistons, O-ring grooves, snap-ring slots, and ported end caps. All geometries are optimized for stress distribution and fluid control.
• Application-Specific Materials
Available materials include CK45, 20MnV6, 42CrMo, stainless steel, aluminum alloy, and bronze. All materials meet ISO and ASTM standards, and we offer full traceability with mill certificates.

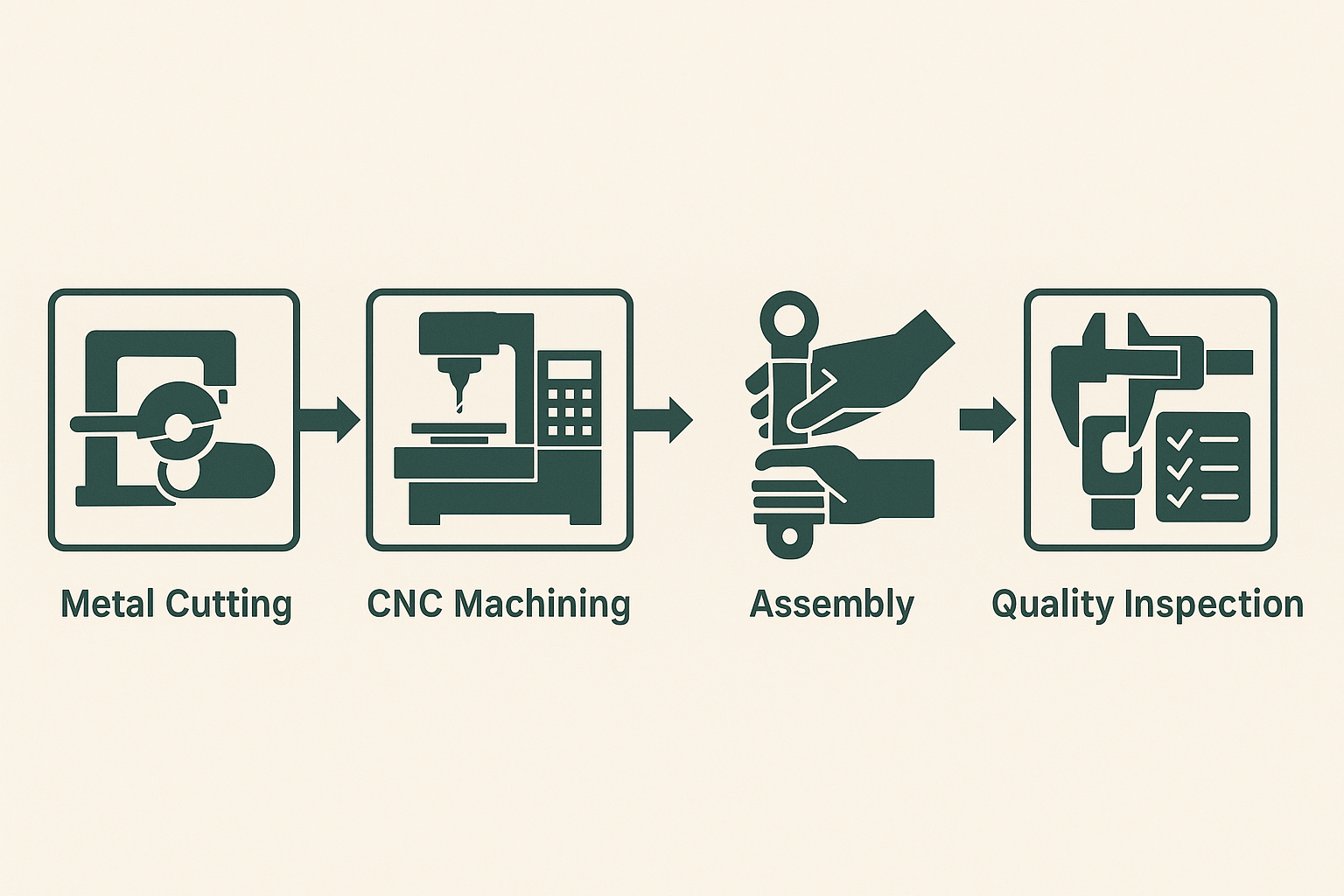

Main Manufacturing Processes
- CNC Turning & Milling: For precise forming of pistons, rods, and gland nuts with complex shapes and fine tolerances.
- Thread Rolling & Grooving: Used to machine custom threads, snap-ring grooves, and sealing features for fluid compatibility.
- Surface Plating: Chrome, nickel, or nitriding to improve corrosion resistance, reduce friction, and extend operating life.
- Welding & Assembly: For integrally-welded end caps or cylinder tube sub-assemblies.
- Leak & Pressure Testing: Optional services for assembled cylinder parts to ensure integrity and reliability under real conditions.
Industries That Use PRIME Cylinder Components
• Hydraulic Equipment
High-pressure cylinder assemblies in excavators, forklifts, presses, and lifting equipment.

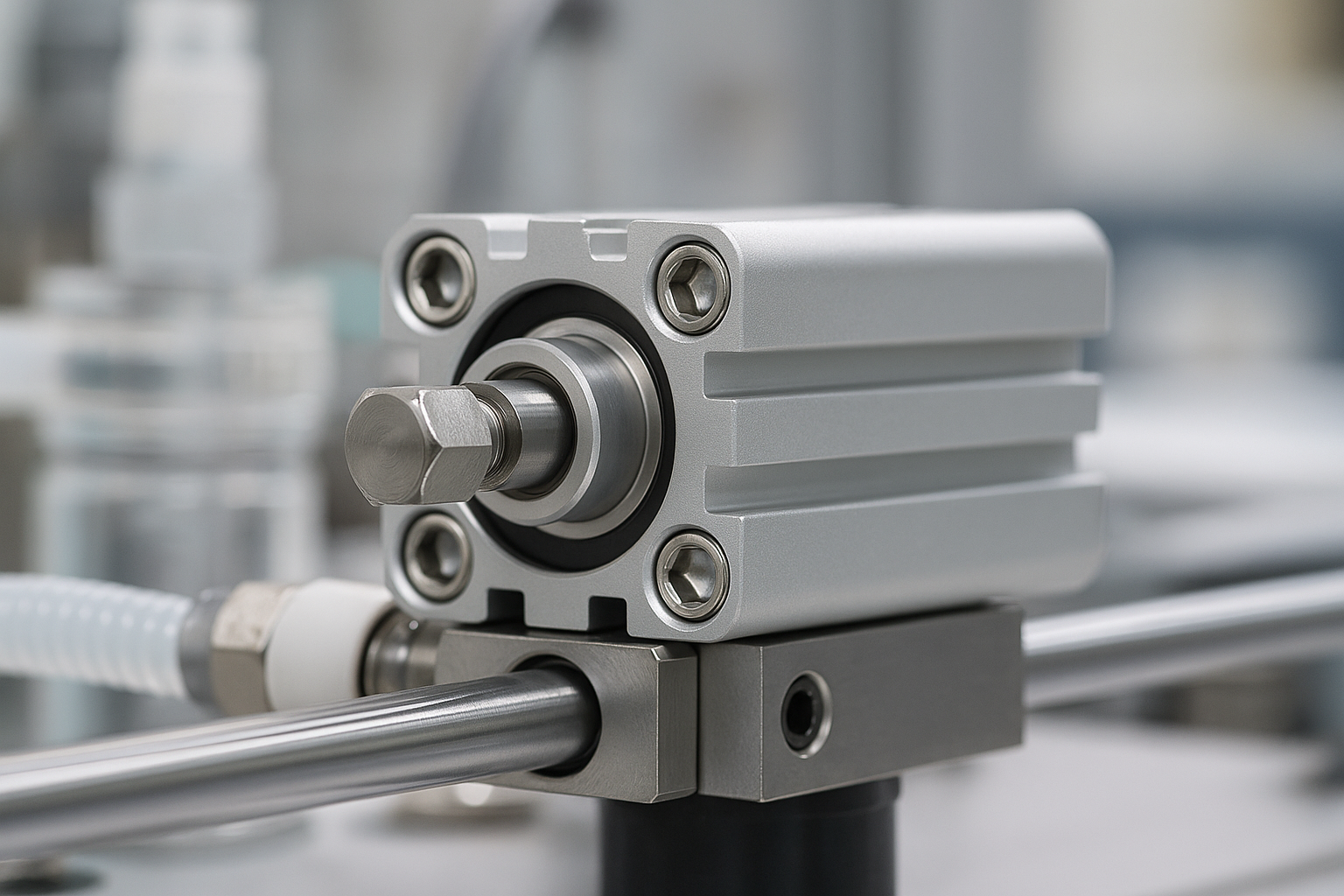

• Pneumatic Systems
Aluminum or stainless cylinder parts for air-driven actuators in automation and robotics.
• Agricultural Machinery
Customized rods, clevises, and housings for tractors, harvesters, and irrigation systems.
• OEM Manufacturing
Component kits for cylinder production lines or integration into complete mechanical assemblies.
• Energy & Marine
Rust-resistant, high-force hydraulic parts for offshore rigs, wind turbines, and shipboard systems.

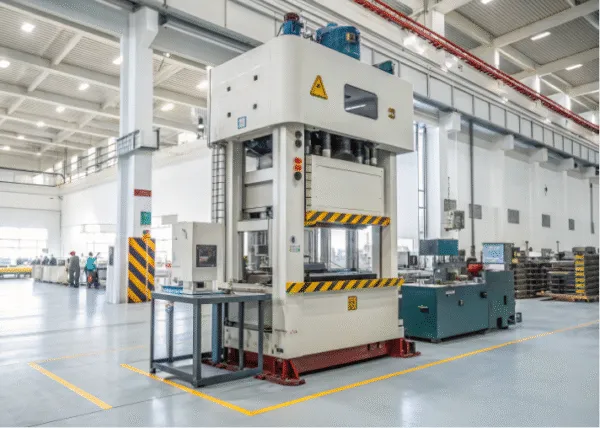

Ⅱ：Explore Custom Cylinder Components and Our Manufacturing Process
Whether you're sourcing custom hydraulic or pneumatic cylinder components for the first time or aiming to deepen your technical understanding, this section provides a comprehensive guide. You'll gain clarity on our manufacturing capabilities, precision control, and how PRIME ensures quality and efficiency throughout the production lifecycle—from raw material to finished cylinder-ready parts.
What are cylinder components? A foundational overview
Custom cylinder parts include precision-machined components such as pistons, rods, gland nuts, cylinder heads, end caps, and sealing housings. They are essential for hydraulic or pneumatic systems that convert pressure into motion. These components are typically crafted from high-strength steel, stainless steel, or aluminum alloys to meet demanding pressure and wear requirements. PRIME supports full customization for diameter, stroke, surface treatment, thread type, and tolerance level—making our parts compatible with various OEM systems worldwide.
Selecting the Right Process: Tailored Machining for Every Cylinder Part
Every cylinder component has unique dimensional and performance requirements. PRIME engineers select and optimize specific machining techniques depending on stress load, surface finish requirements, production batch size, and sealing function. Below are our core manufacturing methods:

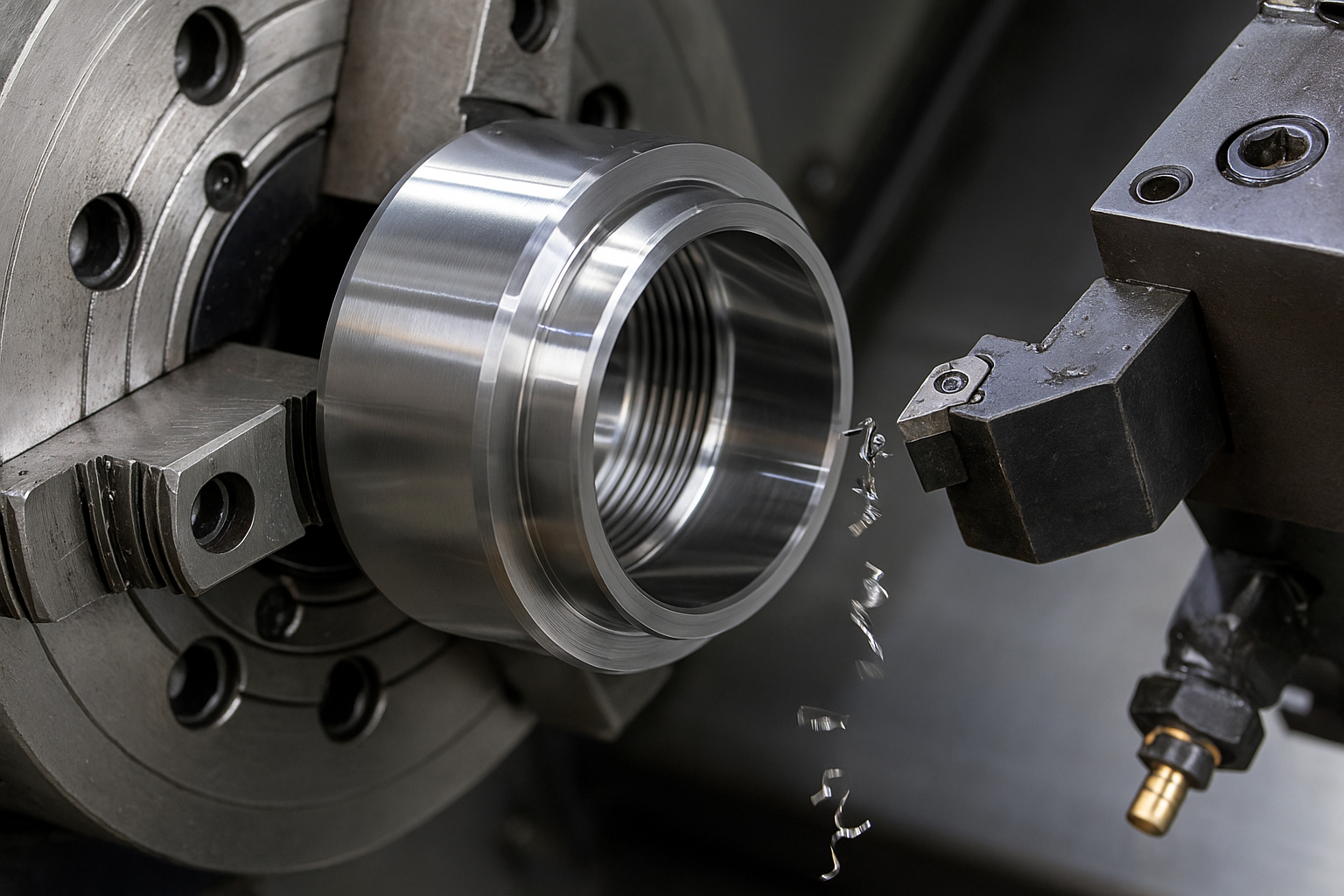

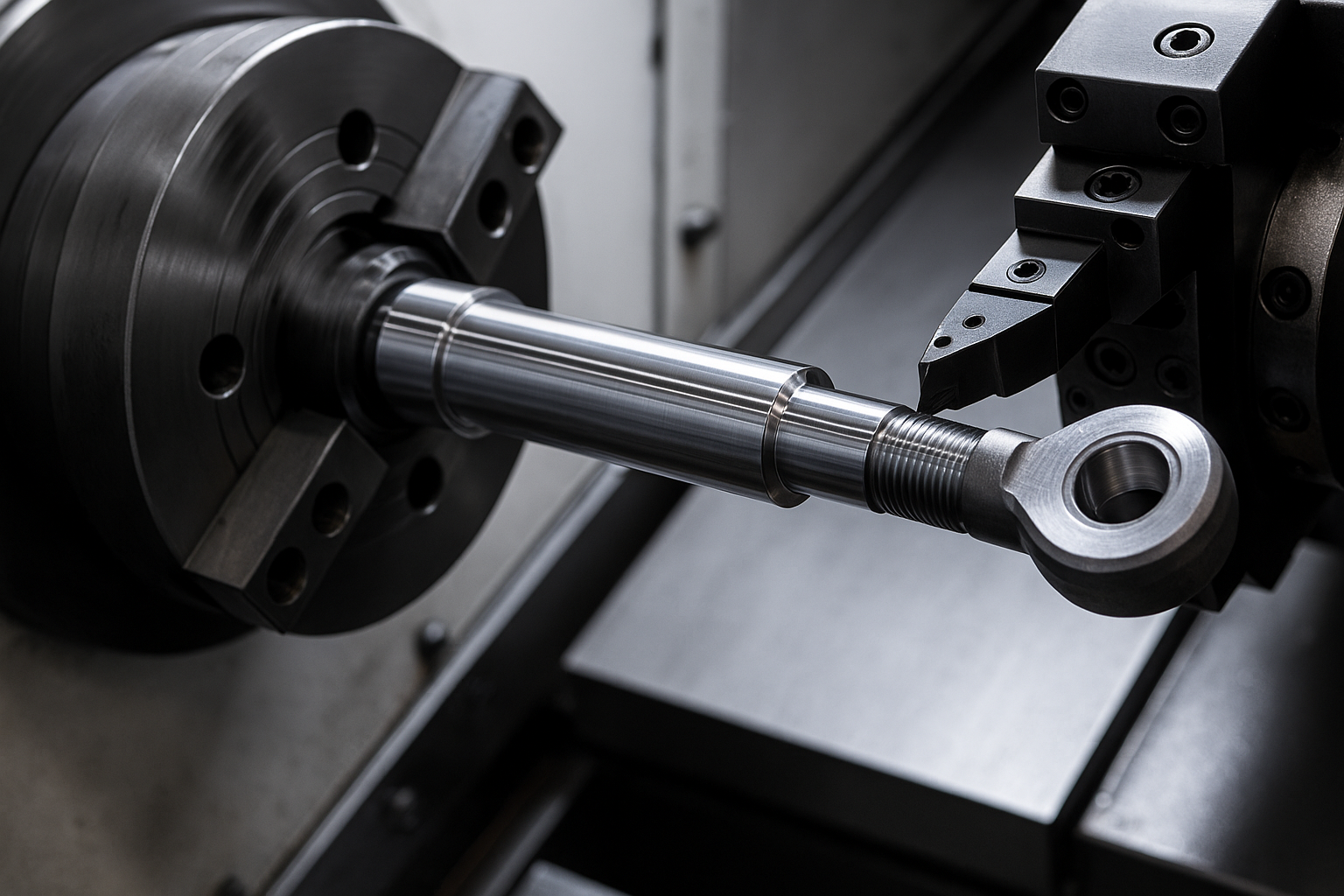

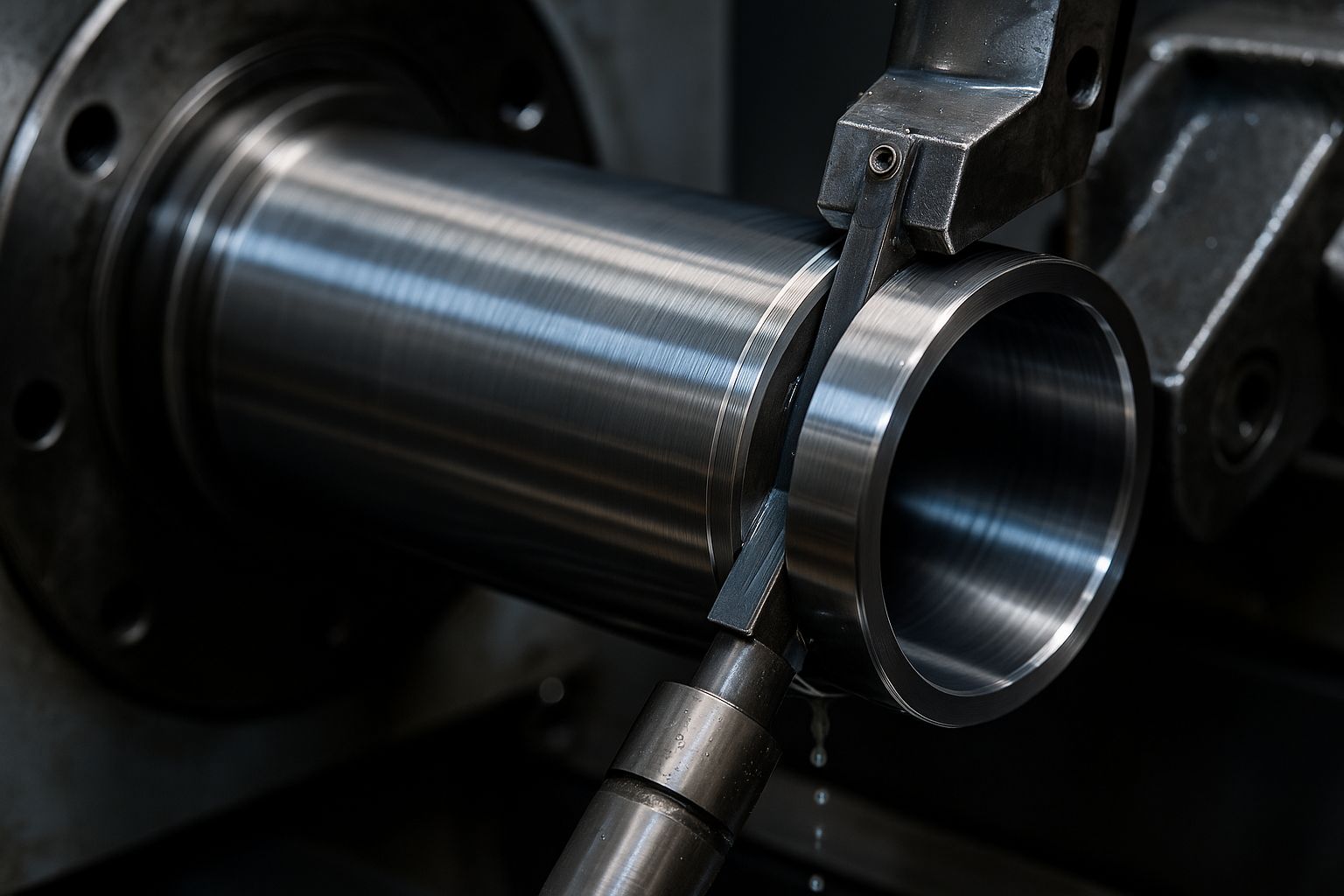

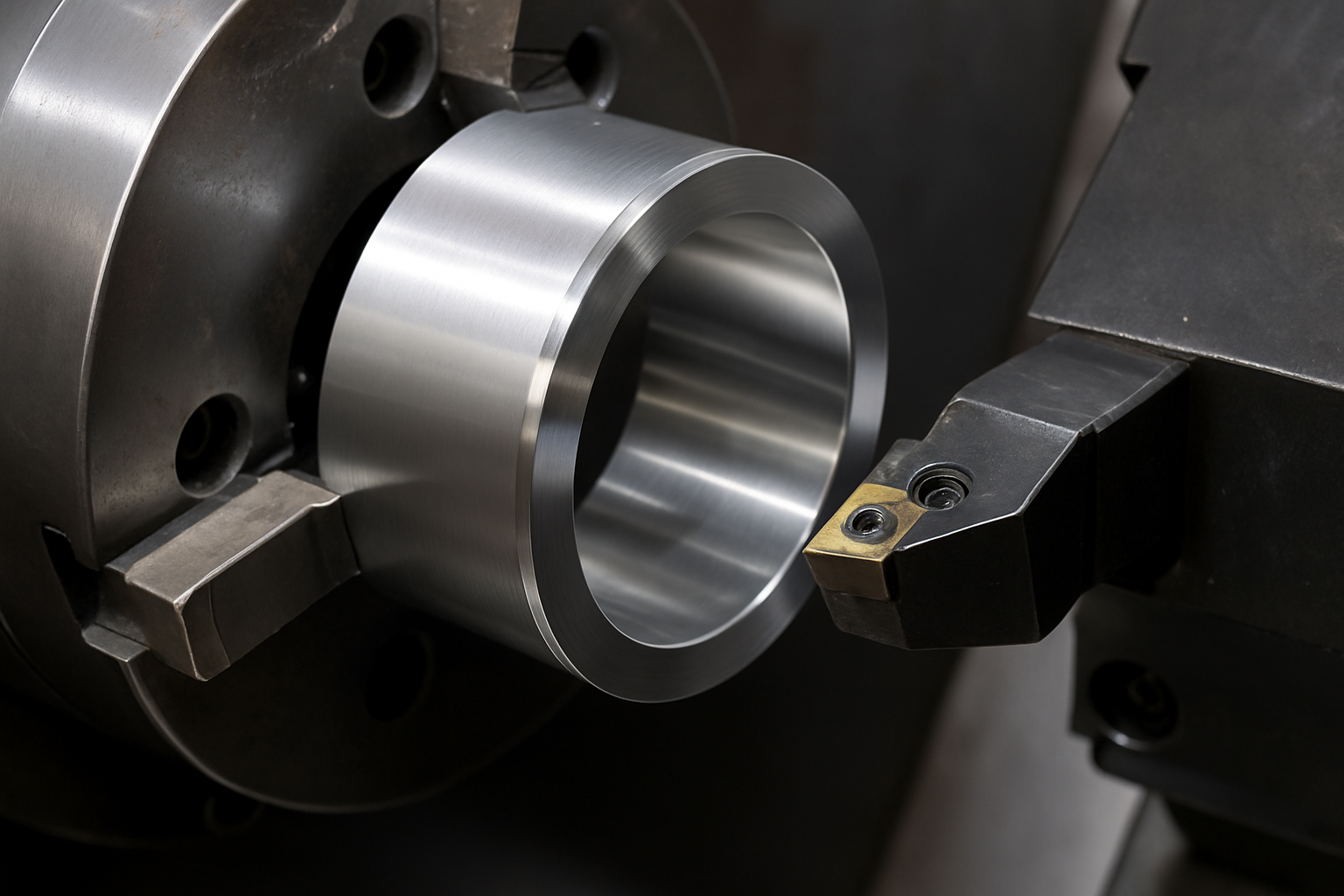

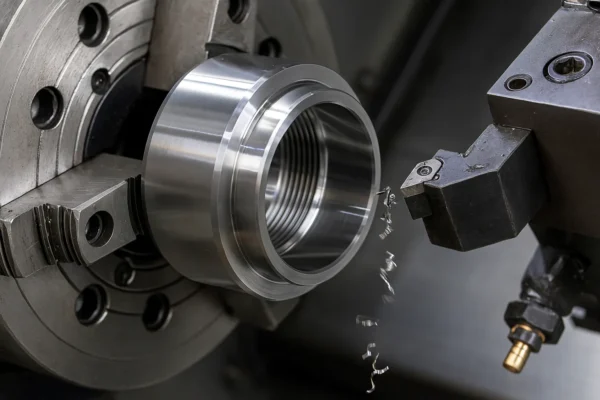

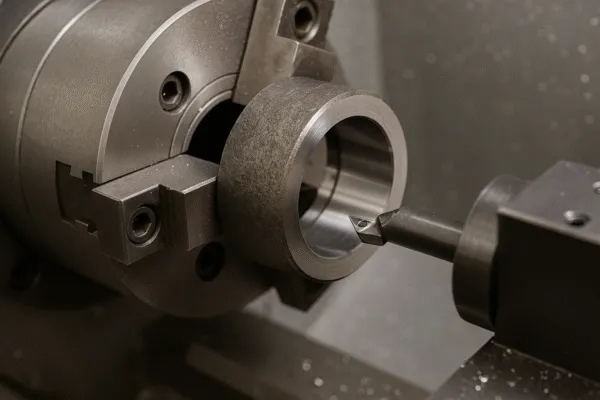

1. CNC Turning & Milling: Core of Precision
Used to machine round parts like piston rods, cylinder bodies, and end caps with complex outer diameters and grooves. We use multi-axis CNC lathes and mills with live tooling to ensure dimensional tolerances down to ±0.01 mm, ideal for high-pressure fit parts. All surfaces are finished for optimal seal integrity and anti-friction performance.
2. Honing & Polishing: Friction Reduction & Seal Protection
Cylinder bores and piston rods require ultra-smooth finishes (Ra ≤ 0.2 μm) to protect seals and extend life. We apply deep-hole honing and high-speed polishing to achieve mirror-finish internal surfaces and precise cylinder roundness.

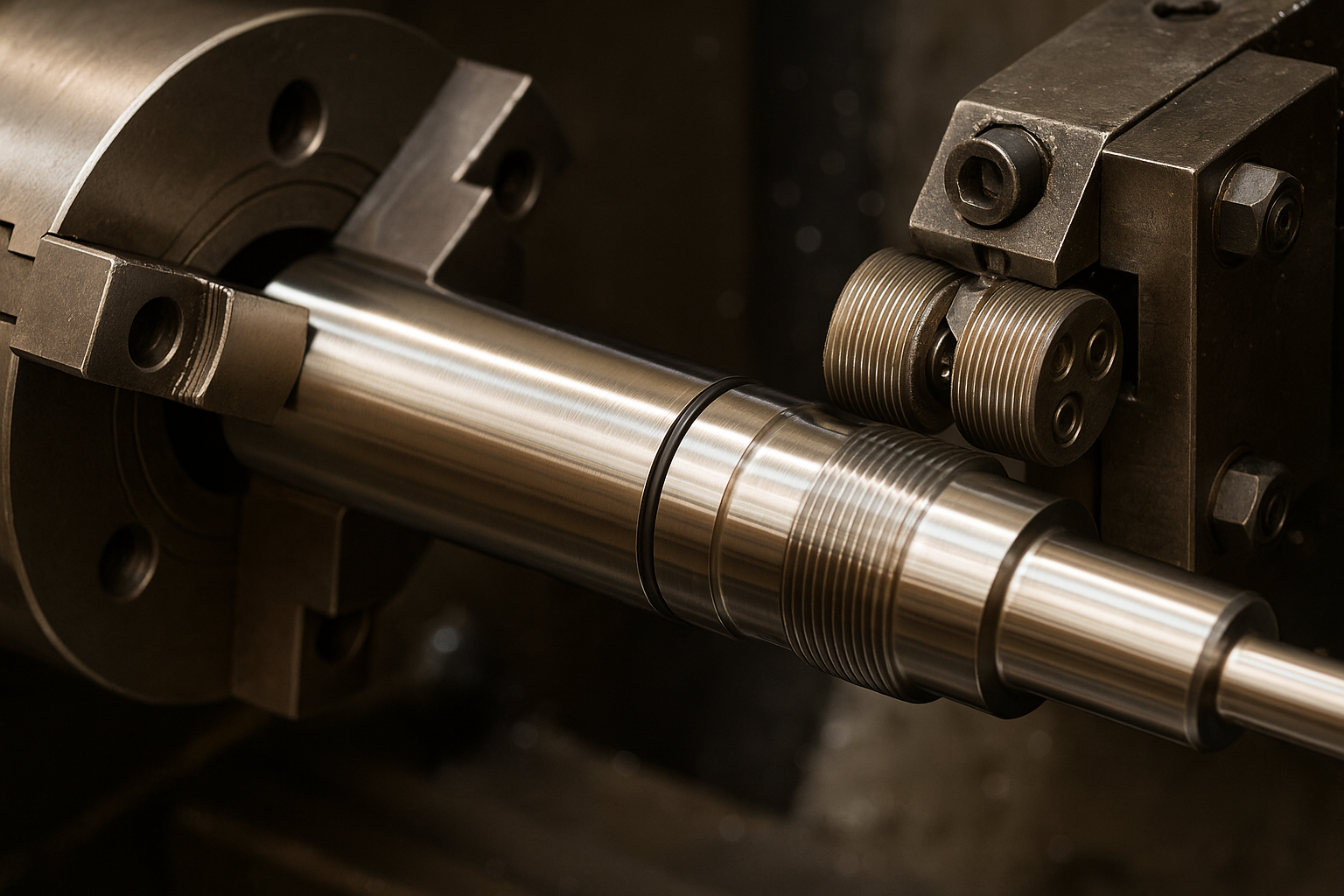

3. Thread Rolling & O-Ring Grooving
We produce a wide variety of thread forms and sealing grooves such as NPT, BSP, metric, UNF, and customized snap-ring or retaining ring grooves. Rolling methods are used instead of cutting to enhance thread strength and surface fatigue resistance.

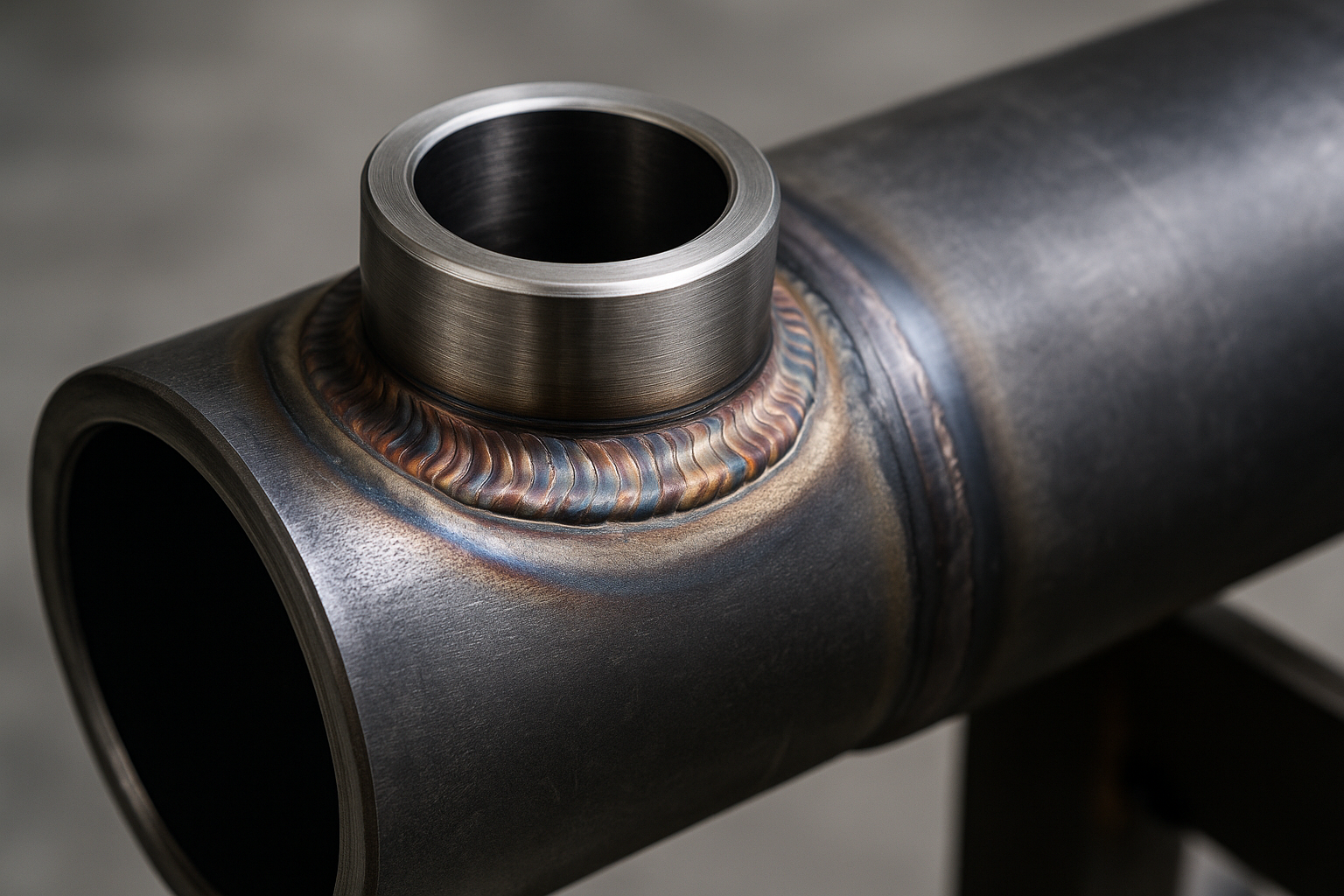

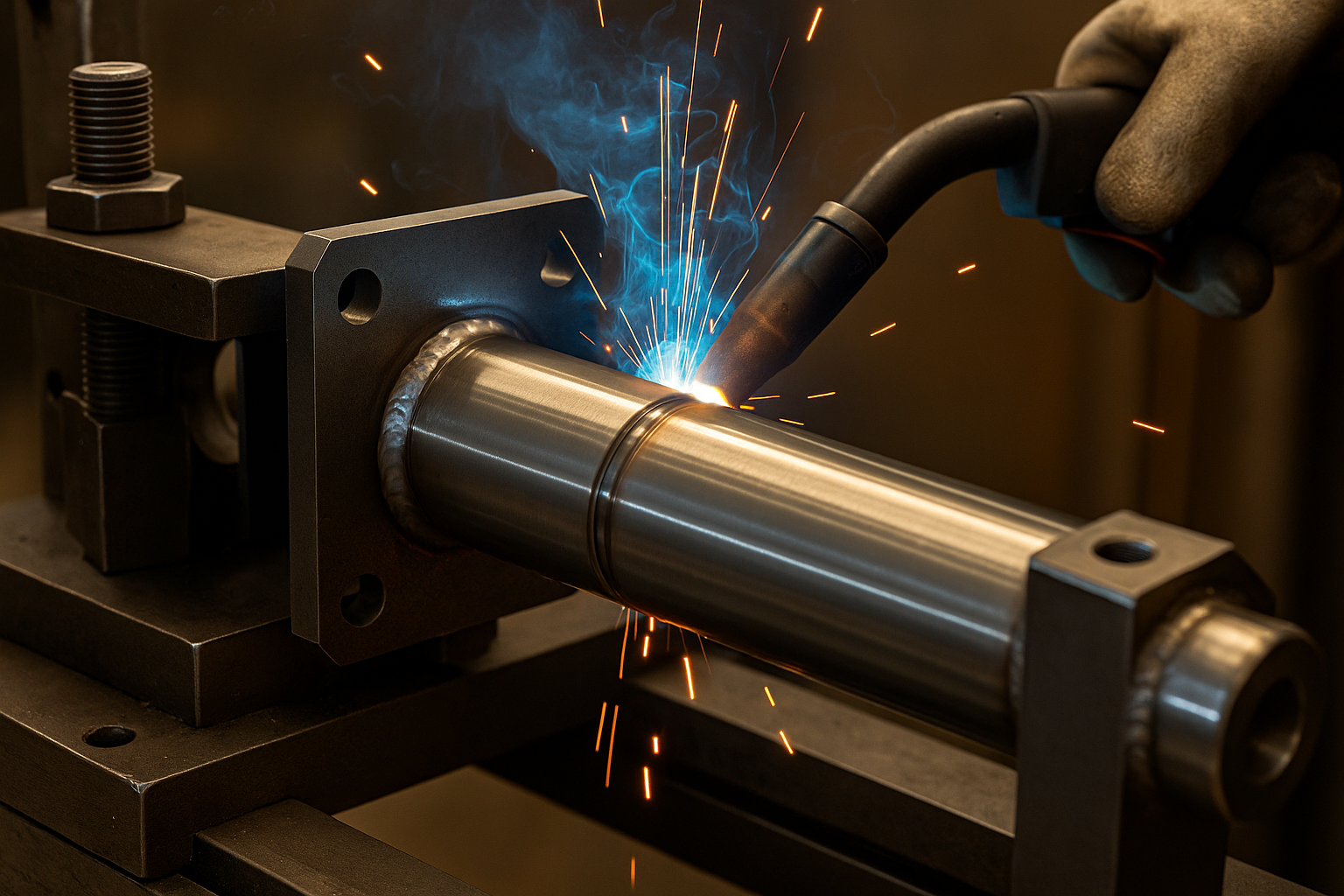

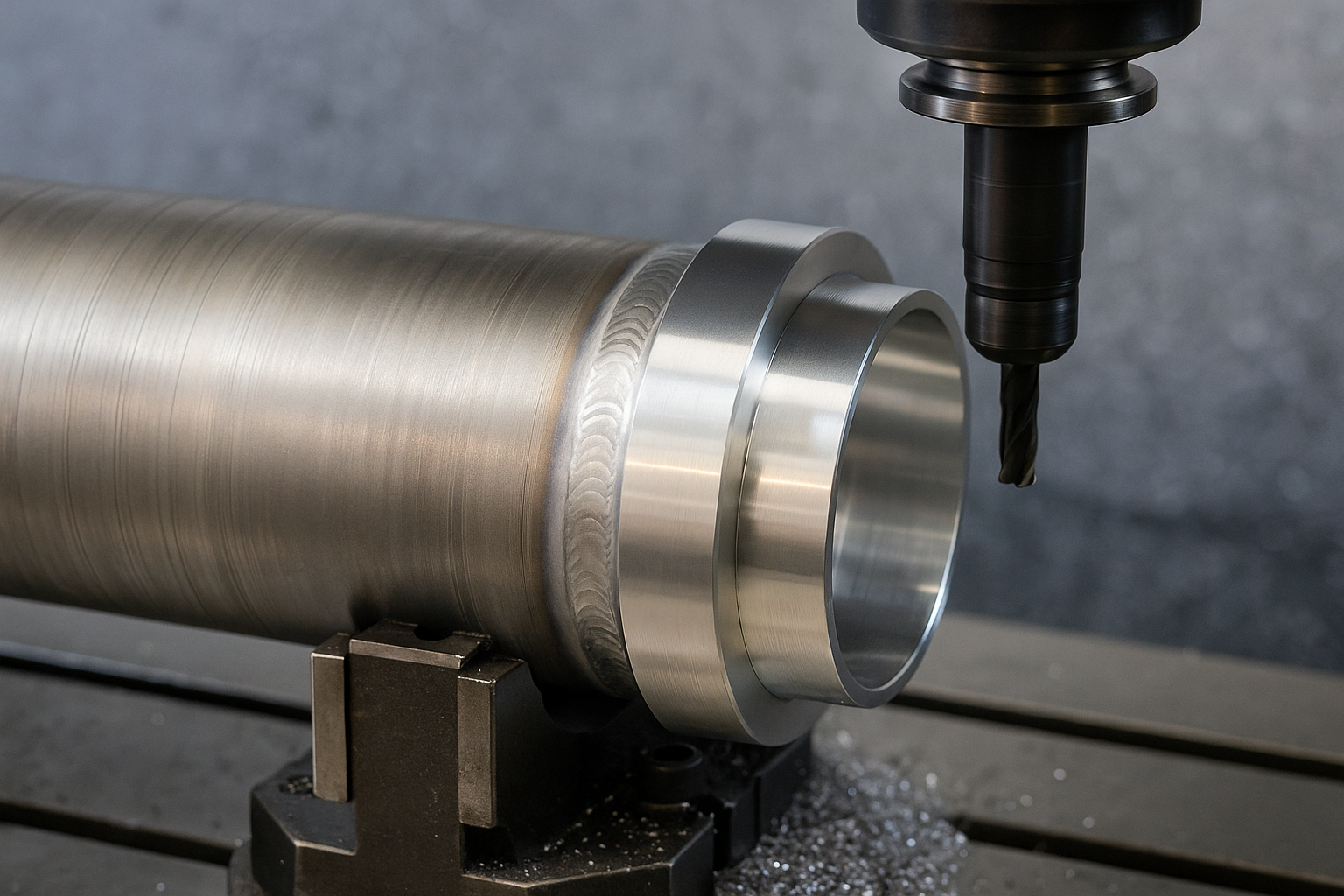

4. Welding & Functional Assembly
We weld flanges, mounting plates, and head ports on thick-wall cylinders using MIG/TIG processes with precision fixtures and flatness control. Finished components can be pre-assembled into kits or packaged for final integration in your factory.
Engineering Tip for OEM Buyers
To ensure the most efficient design and production method, please provide drawings with tolerances, thread specifications, annual volume estimates, and material preferences during the inquiry stage. This allows us to optimize for your application and budget.
Ⅲ：Custom Cylinder Component Materials: Performance Starts Here
The material you choose determines the durability, sealing performance, pressure tolerance, and service life of your custom metal cylinder components. At PRIME, we offer expert material guidance to ensure your cylinder parts withstand demanding applications in hydraulic, pneumatic, and industrial systems. We assess a range of metals based on strength, machinability, surface treatment compatibility, and compliance with international standards to meet your project needs precisely.
Common Cylinder Materials and Key Characteristics
| Material | Wear Resistance | Machinability | Tensile Strength (MPa) | Typical Cylinder Use |
|---|---|---|---|---|
| 20# / SAE1020 Steel | Moderate | Excellent | 390–490 | Cylinder barrels, honed tubes for hydraulics |
| 45# / SAE1045 Steel | High | Good | 570–700 | Cylinder rods, piston heads, flanges |
| Stainless Steel 304/316 | Excellent | Fair | 500–600 | Corrosive environments, food-grade cylinders |
| Aluminum Alloy 6061-T6 | Moderate | Excellent | 290–350 | Lightweight pneumatic cylinders |
| Brass / Bronze | Good | Excellent | 250–400 | Bushings, wear sleeves, bearing cylinders |
How PRIME Supports Smart Material Decisions
PRIME delivers more than just raw materials — we provide technical and strategic support to help you select the best fit for your cylinder application. From traceability to cost efficiency, we help ensure your materials meet both engineering and compliance standards.
Certified Material Testing & Traceability
We provide Mill Test Certificates (MTC), chemical composition reports, and mechanical property data for every lot of material used in your cylinder parts. Full traceability is ensured — from mill origin to finished component.
Design Optimization for Cylinder Applications
Our team advises on wall thickness, surface finish specs, seal groove geometry, and weld flange placement — ensuring each part is both manufacturable and fit-for-purpose.
Cost Optimization with Functional Performance
We evaluate not only raw material price, but also machining time, finishing processes, and performance under load. This helps reduce waste and rework, while improving cost-effectiveness over the product lifecycle.

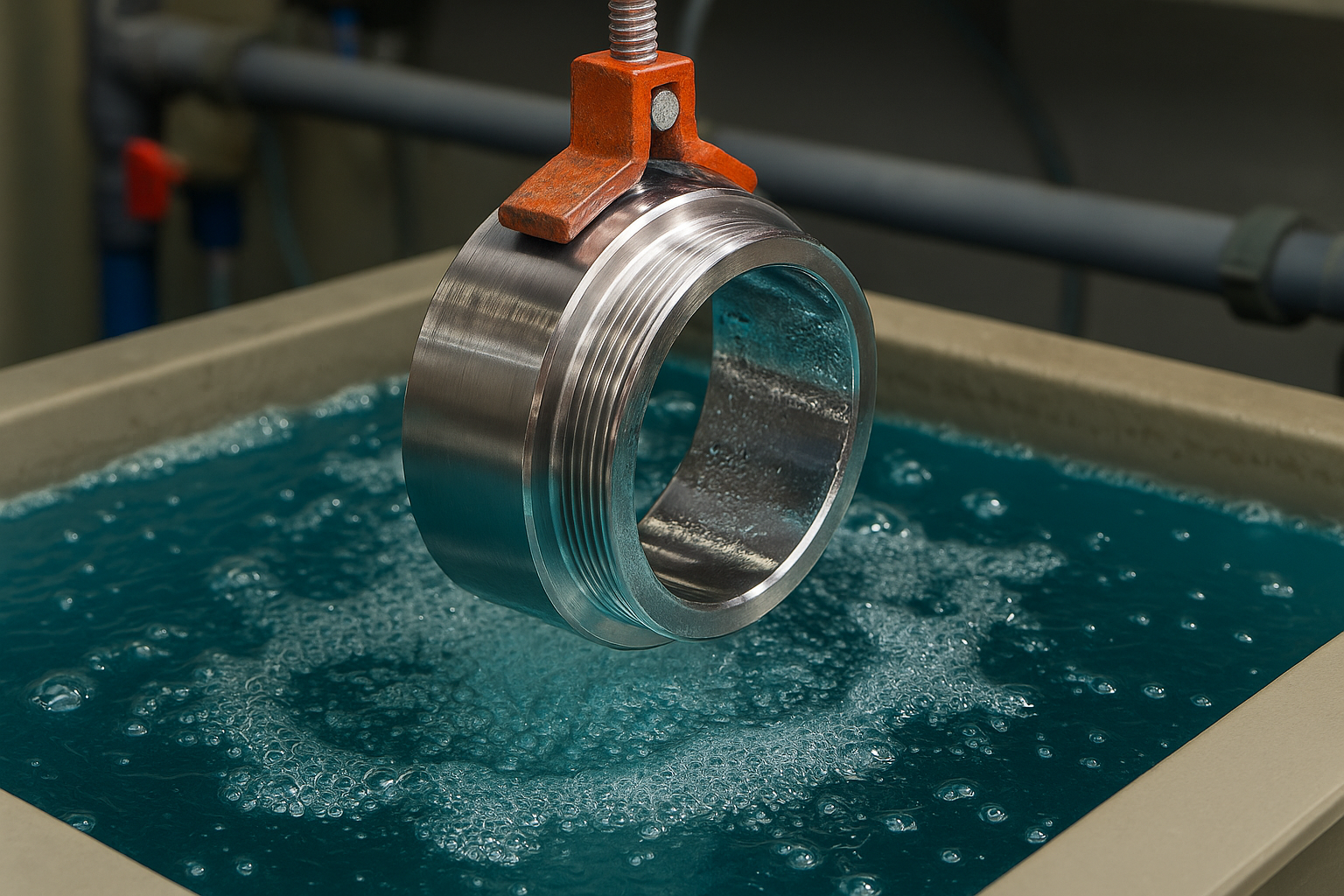

Ⅳ：Surface Treatments: Boost Cylinder Component Performance
Specialized surface treatments play a key role in enhancing the performance, durability, and reliability of custom cylinder components. PRIME offers targeted finishes for threaded lock collars, welded steel collars, and lightweight aluminum rings — ensuring optimal corrosion protection, sealing capability, and long-term fit integrity under pressure.
- Electroplating (Zn, Ni, Cr): Robust corrosion resistance for welded steel collars and threaded lock rings operating in fluid-filled environments.
- Powder Coating: UV-resistant coatings ideal for outdoor-use hydraulic cylinders and large-diameter locking collars in mobile equipment.
- Anodizing (Al): Protective layers on lightweight aluminum collars to resist wear and improve heat dissipation in high-speed cylinders.
- Industrial Painting: Multi-layer epoxy or polyurethane coating for welded collars exposed to aggressive environmental conditions.
- Passivation: Applied to stainless locking rings and sealing collars to maximize corrosion resistance in medical or food-grade cylinders.
- Deburring and Polishing: High-precision finishing on threads, grooves, and sealing faces ensures smooth assembly and consistent sealing performance.

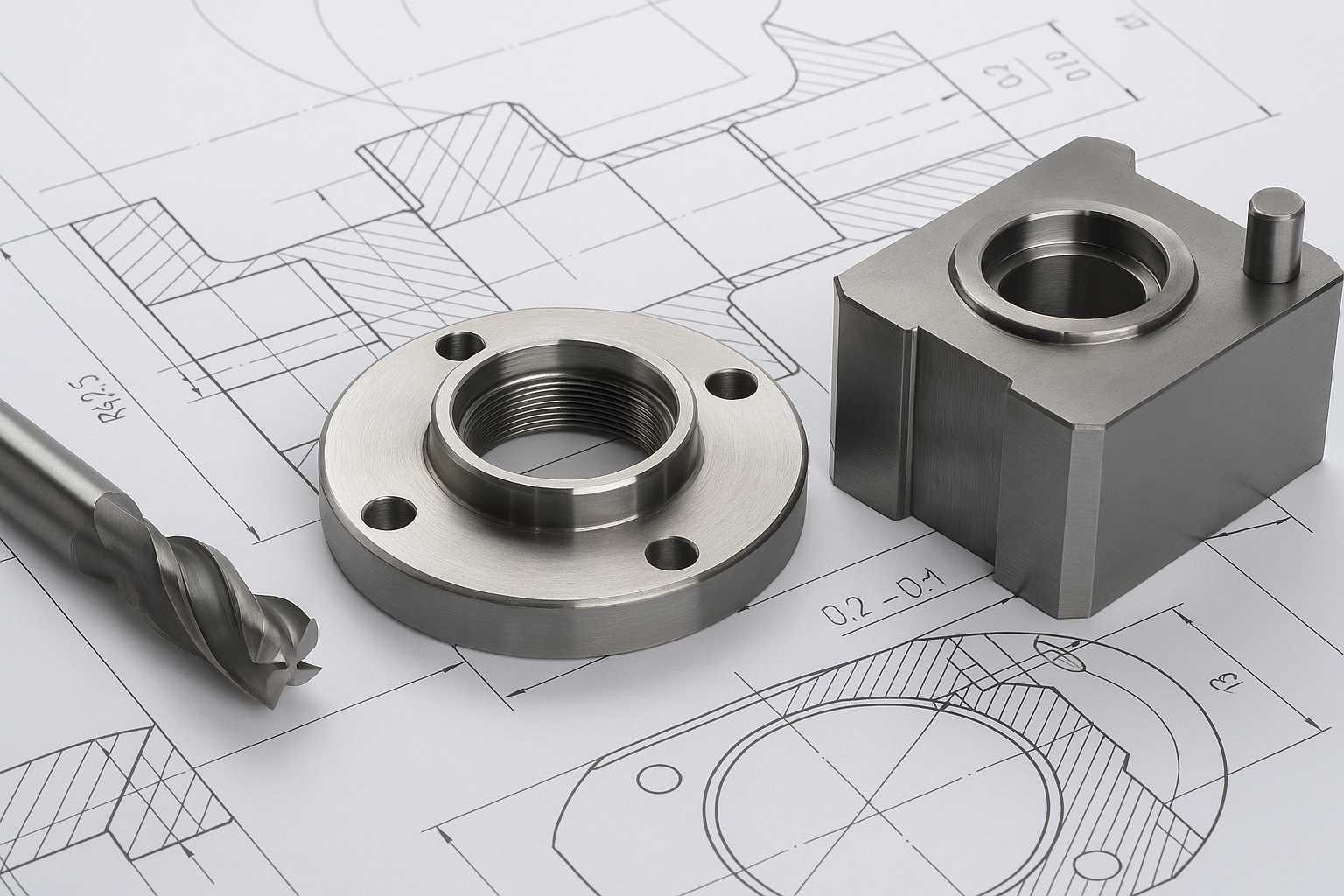

Ⅴ：Tooling & Die Engineering for Critical Cylinder Parts
Every cylinder component requires tooling precision for reliability under pressure. At PRIME, we design and maintain custom dies, jigs, and forming tools to ensure critical features like thread profiles, collar flanges, and welding interfaces meet exact tolerances — whether for aluminum lightweight collars or heavy-duty welded assemblies.
- Integrated Collar Tooling Design: CAD/FEA validation for locking groove geometry, weld flange alignment, and anti-rotation features.
- Rapid Prototyping: Aluminum tooling for prototype rings tested under hydraulic load before final tool steel production.
- High-Precision Machining: Multi-axis CNC and EDM for complex internal threading and flange profiles with ±0.005 mm accuracy.
- Die Surface Engineering: Nitrided dies and PVD-coated punches increase longevity during steel collar forming and threading operations.
- Real-World Validation: Tryouts under simulated cylinder pressure cycles, complete with dimensional and torque performance reports.
Ⅵ：PRIME Quality Assurance for Cylinder Components
PRIME ensures each custom cylinder component — from threaded lock collars to welded and anodized aluminum rings — meets stringent quality expectations. Our multi-stage quality program includes material verification, in-process control, and final inspection backed by traceable certifications.
- Material Certification & Traceability: All steel, aluminum, and stainless materials are verified against MTRs and linked to batch IDs.

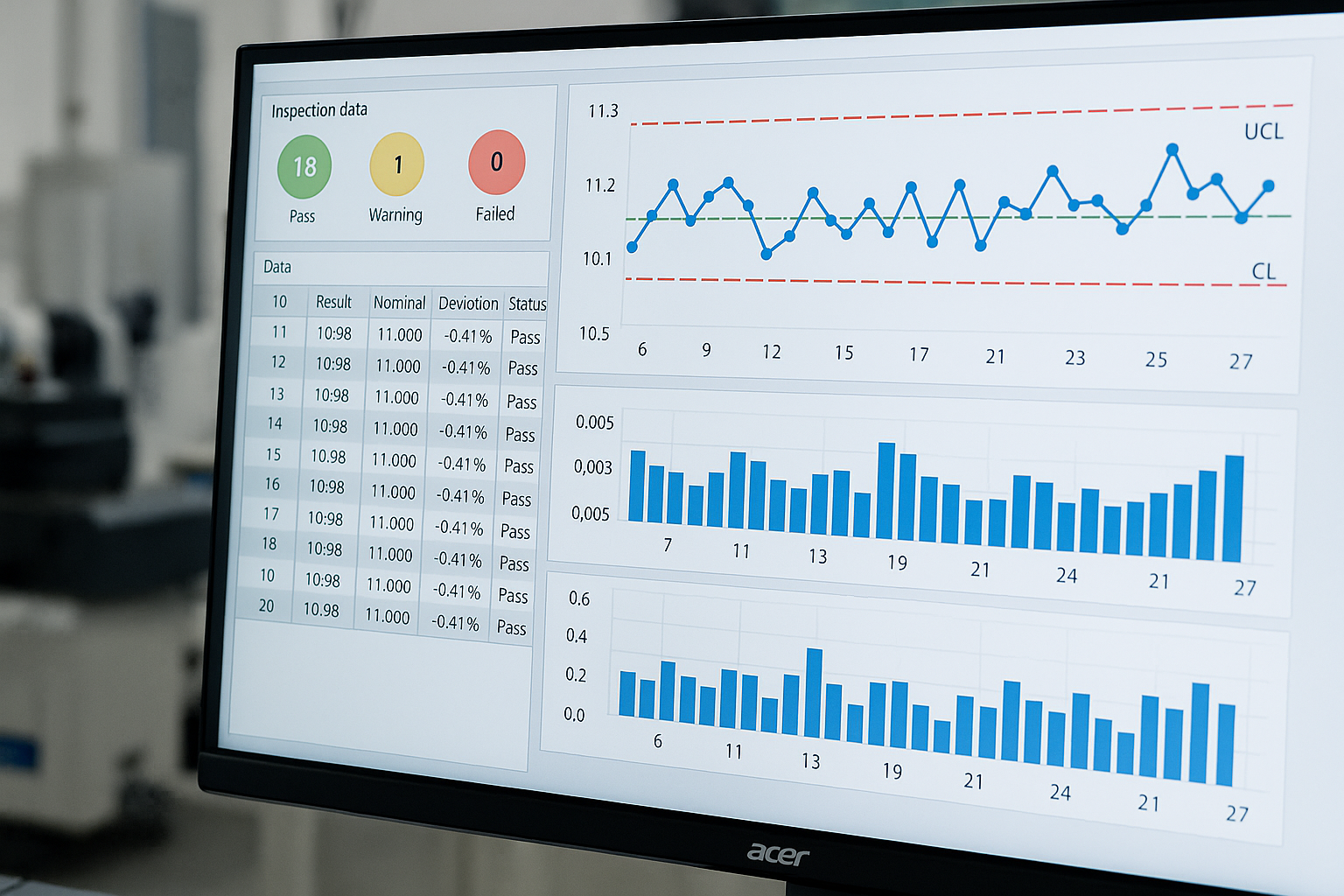

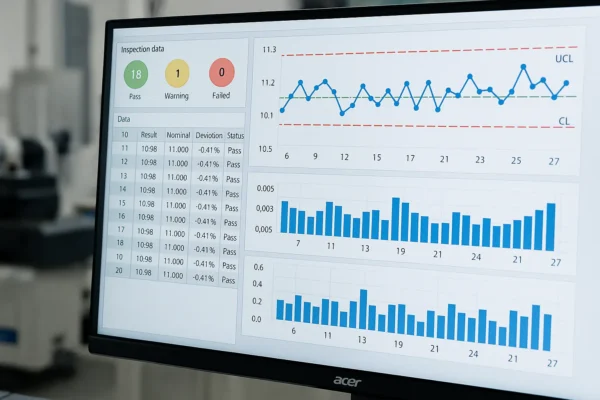

- SPC-Controlled Processes: Real-time monitoring of thread pitch, weld bead geometry, and bore tolerances during production.
- Inline Visual & Dimensional Checks: Cameras and sensors detect defects in surface finish, thread engagement, or concentricity.
- Final CMM Verification: Precision measurement of groove depths, thread angles, and flange diameters ensures functional fit.
- Complete Documentation: All orders include COC, dimensional inspection reports, and process history for full traceability.
Ⅶ：Common Cylinder Collar Issues & PRIME’s Engineering Solutions
Manufacturing high-precision cylinder components such as threaded lock rings, welded collars, and lightweight aluminum neck rings requires strict process control. At PRIME, we address these challenges head-on through simulation, robust tooling, and multi-stage inspections.
1. Thread Misalignment or Galling
Description: Occurs in threaded lock collars when threads are miscut or experience frictional damage during assembly.
PRIME Solution: 5-axis CNC thread cutting, anti-galling tool coatings, and in-process thread gauges ensure fit and torque consistency.
2. Weld Distortion in Steel Collars
Description: Heat-induced warping at weld joints compromises alignment with cylinder tubes or heads.
PRIME Solution: Precision welding jigs, MIG/TIG with heat control, and post-weld machining restore dimensional accuracy.
3. Deformation of Thin-Walled Aluminum Rings
Description: Lightweight collars may lose shape during machining or handling due to low structural rigidity.
PRIME Solution: Use of tempered alloys, optimized clamping pressure, and low-speed machining for deformation-free output.
4. Seal Groove Tolerance Failure
Description: O-ring or retaining ring grooves outside tolerance may cause hydraulic leakage or installation issues.
PRIME Solution: CMM-verified groove profiling, calibrated cutters, and real-time SPC control of critical dimensions.
5. Surface Scratches or Contamination
Description: Surface damage from manual handling or unclean fixtures affects sealing integrity and appearance.
PRIME Solution: Non-contact handling, anti-scratch packaging, ultrasonic cleaning, and inline camera inspection ensure surface quality.
Ⅷ：Diverse Applications: The Value of PRIME Cylinder Components
Custom metal cylinder components play a critical role in modern hydraulic and pneumatic systems. From heavy-duty construction machinery to compact medical devices, PRIME delivers precision collar parts, lock rings, and welded interfaces tailored for performance under pressure.

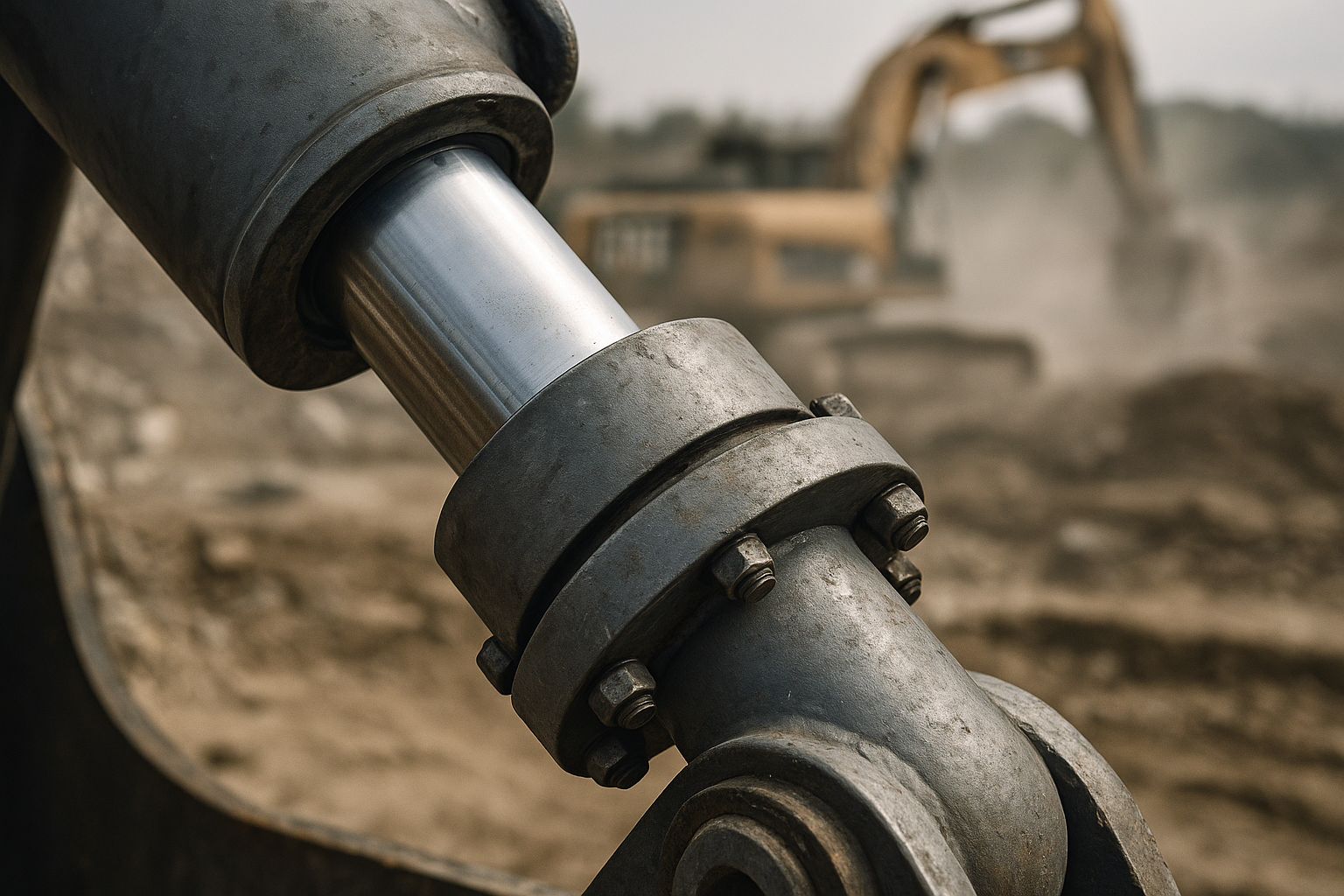

1. Construction Machinery
Application: Used in earthmovers, cranes, and lifting cylinders requiring robust locking collars and welded flanges.
PRIME’s Solution: We supply welded steel collars and load-bearing cylinder rings with heavy-wall design and high-impact resistance.

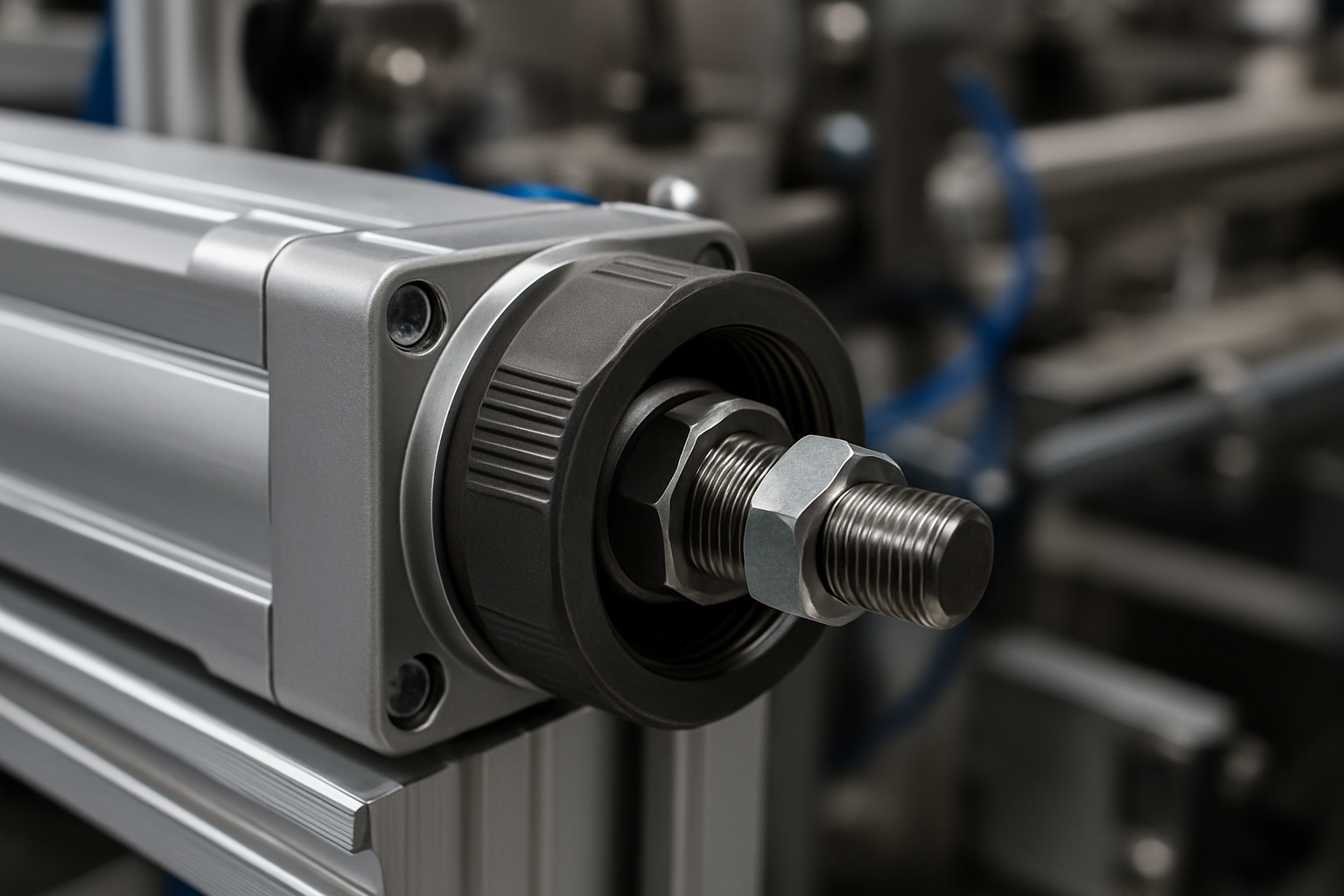

2. Industrial Automation
Application: Pneumatic and hydraulic systems for robotics and presses requiring precision lock rings and seal interfaces.
PRIME’s Solution: Machined threaded collars with anti-vibration grooves and tight concentricity ensure airtight performance and fast assembly.

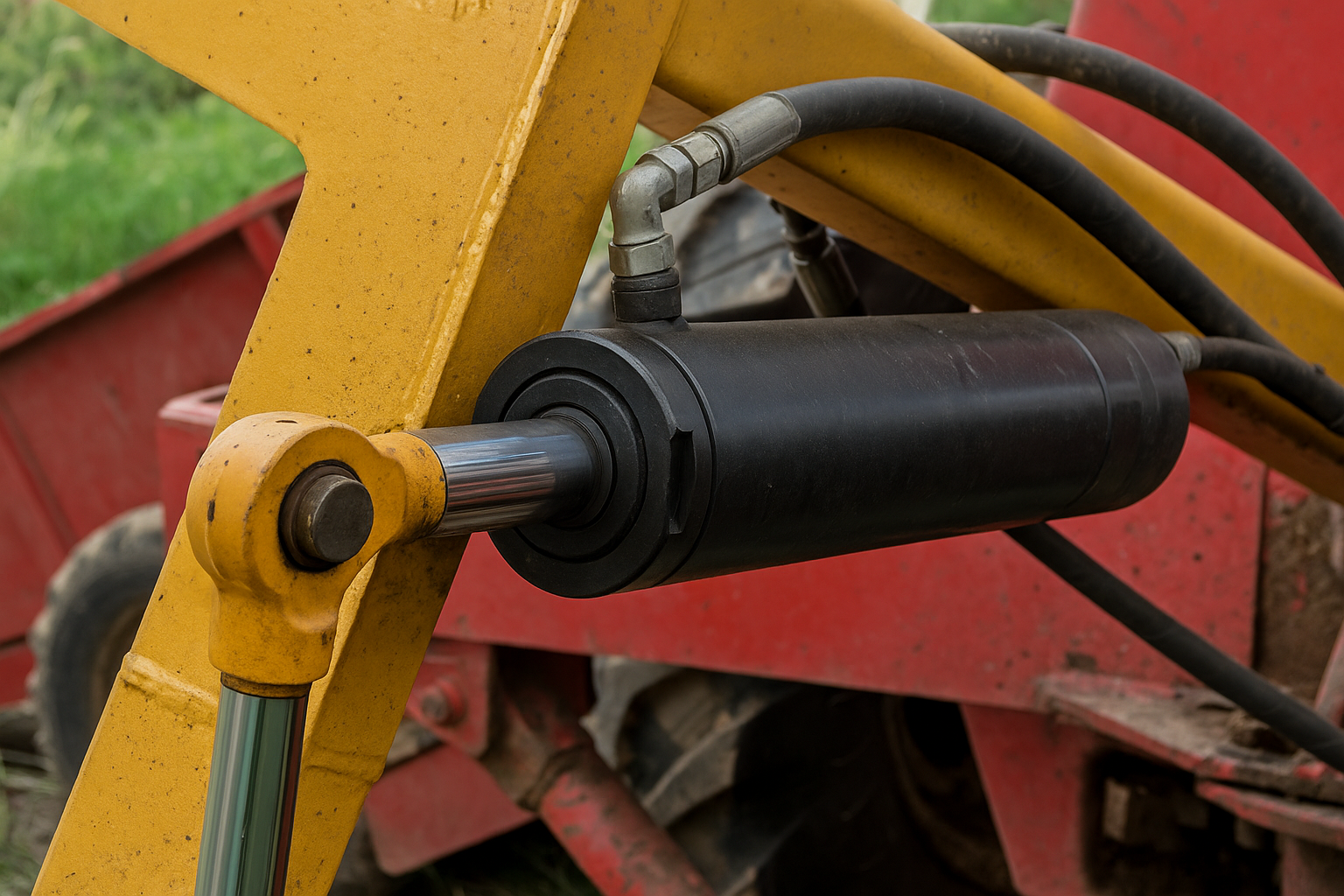

3. Agricultural Machinery
Application: Hydraulic actuators on tractors, sprayers, and tillers often face dust, mud, and cyclic pressure.
PRIME’s Solution: Zinc-plated or powder-coated steel collars with groove-integrated sealing to resist contamination and maintain stroke efficiency.
4. Aerospace & Defense
Application: Actuation systems for aircraft landing gear, brakes, and military-grade robotics.
PRIME’s Solution: Anodized aluminum collars and titanium-based lock rings combine strength-to-weight advantages with aerospace tolerances.
5. Medical & Laboratory Equipment
Application: Compact cylinders used in automated analyzers and surgical systems.
PRIME’s Solution: Corrosion-resistant stainless steel collars with ultra-smooth Ra < 0.6μm finish for sterile environments.

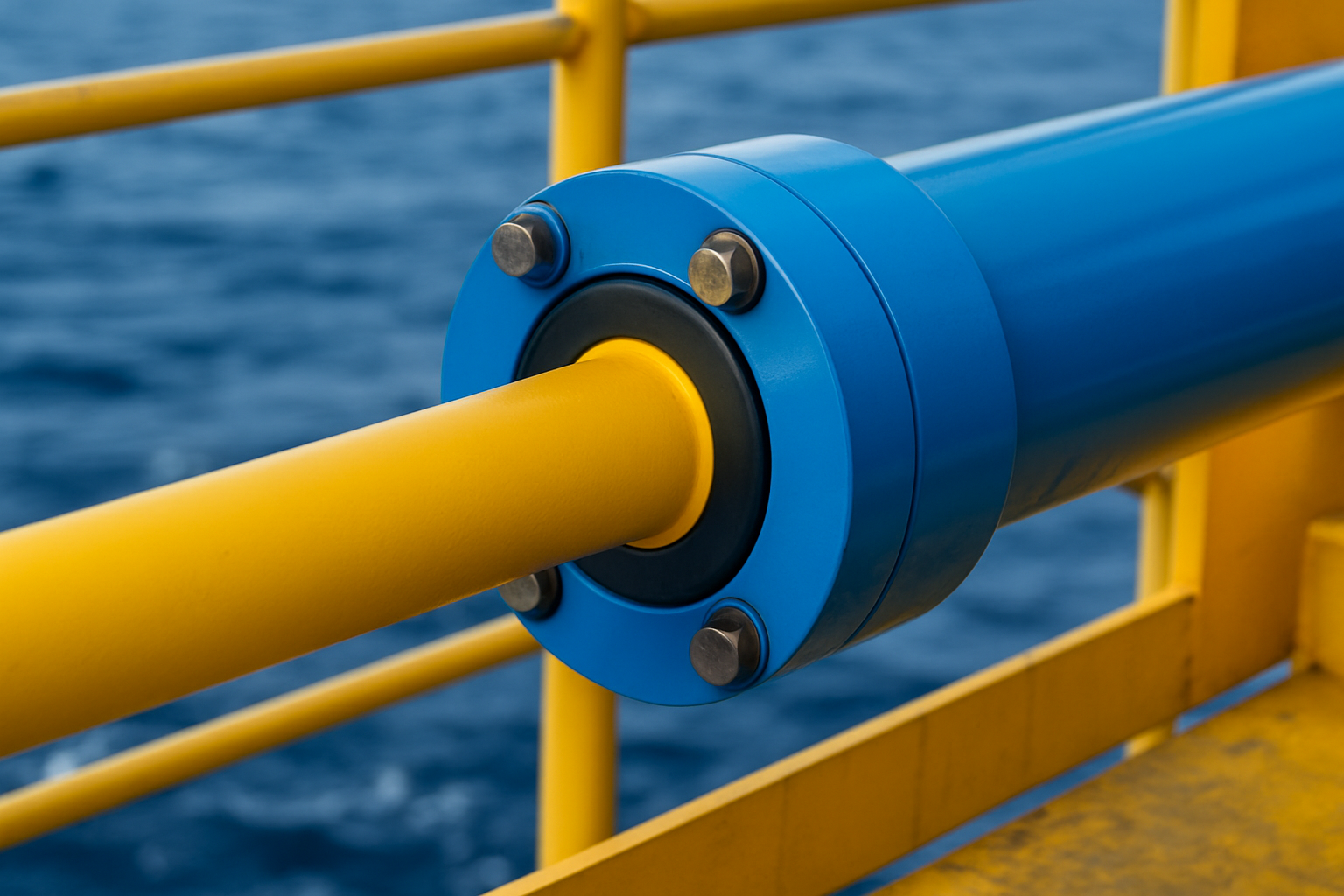

6. Marine & Offshore Systems
Application: Cylinders in ship steering, cranes, and offshore drilling rigs face saltwater corrosion and pressure cycles.
PRIME’s Solution: Epoxy-coated collars with nitrided threads and stainless sleeves for extreme corrosion and wear resistance.
From aerospace to agriculture, PRIME offers precision-engineered cylinder collars and accessories designed for durability, sealing, and strength under demanding conditions.
Not seeing your application here? Contact our engineering team — we’ll evaluate your drawings and create a custom collar solution tailored to your cylinder system.
Discuss Your ApplicationⅨ：How to Choose the Right Cylinder Component Supplie
Selecting a reliable supplier for custom cylinder components—such as threaded lock rings, welded collars, or lightweight aluminum neck rings—is vital to ensure sealing integrity, structural stability, and long-term system performance. This guide outlines key evaluation criteria that go far beyond pricing.
1. Engineering Capability & Manufacturing Precision
- Machinery: Ensure 5-axis CNC, EDM, and welding automation are available for high-precision threads, grooves, and collars.
- Application Understanding: Can they produce parts for hydraulic, pneumatic, medical, or aerospace cylinders?
- Material Expertise: Experience with stainless steel, anodized aluminum, nitrided alloy steels, etc.
- Tolerance & Surface Finish: Ability to meet ±0.01 mm tolerances and Ra < 0.8 μm as required.
2. Quality Control & Certifications
- Standards: ISO 9001 is a must; for aerospace-grade collars, AS9100 or NADCAP may be required.
- QA Practices: Real-time SPC, groove profile inspection, and 100% visual checks for sealing areas.
- Traceability: Material Test Reports (MTR), Certificates of Conformance (CoC), and serialized part traceability.
- Problem Resolution: Record of non-conformance handling and root cause countermeasures.
3. Production Capacity & Lead Time Control
- Batch Handling: Can they manage low-volume prototypes and scale up for OEM mass production?
- Delivery: How quickly can they deliver heat-treated, coated, and machined assemblies?
- Tooling Lead Time: In-house tooling reduces delays and boosts responsiveness.
4. Stability & Long-Term Partnership
- Check business longevity, reinvestment into new processes, and succession plans.
- Do they serve top brands in aerospace, medical, or hydraulic markets?
- Review export volume, revenue breakdown, and supplier diversification risk.
5. Technical Communication & DFM Support
- How fast do they respond to tolerance analysis, surface specs, or DFM advice?
- Can they suggest collar design adjustments for machining efficiency?
- Is there a dedicated technical liaison?
6. Export Experience & Location
- Do they handle DAP/DDP shipping terms and export crate packaging?
- Can they consolidate shipments with other metal parts?
Evaluate PRIME against these criteria and discover why global manufacturers rely on us for cylinder collar components that perform under pressure.
Ⅹ：Design for Manufacturability (DFM) in Custom Cylinder Components
Optimize your custom cylinder assemblies — including locking rings, welded collars, and lightweight alloy rings — with our manufacturability-first engineering strategy.
What is DFM for cylinder components? It’s an integrated engineering method to simplify, strengthen, and scale your cylinder designs, while minimizing production risks and cost.
At PRIME, we collaborate closely with your team to ensure every thread-locking ring, welded flange, or precision-machined collar is optimized for performance, cost-efficiency, and seamless assembly.
Buyer's concern: “My cylinder design uses multiple interfaces and materials. I'm worried about welding stress, aluminum part deformation, and thread misalignment during high-volume builds. How can I de-risk this?”
1. Early CAD Review & Collar Feasibility
We evaluate your 3D drawings to identify weld access challenges, thread tolerancing risks, and aluminum collar deformation zones before tooling starts — ensuring a reliable base for fixture development.
2. Material Selection & Ring Efficiency
- Lightweighting: Switching to 6xxx series aluminum for aerospace collars or necks.
- Weld Compatibility: Recommending base + ring metals with matched thermal expansion.
- Corrosion Resistance: Galvanized locking rings for offshore and mobile applications.
3. Manufacturing Efficiency & Assembly Simplification
- Integrated Ring Threads: Machining thread zones directly into collars to eliminate inserts.
- Pre-weld Fixtures: Designing fixturable neck rings to reduce heat distortion.
- One-Piece Flanges: Switching from multi-weld collar assemblies to formed flanges.
4. Precision Tolerancing & Functional Stability
- Thread Fit Analysis: Achieving consistent torque specs for locking rings.
- Surface Integrity: Optimizing contact surfaces for O-ring sealing and pressure cycles.
- Geometric Control: Using GD&T for neck ring alignment and parallelism.
PRIME’s DFM support is more than advice — it’s your blueprint for scalable cylinder part production. Whether it’s optimizing for robotic welding, thread concentricity, or weight reduction, we help ensure your components hit the ground running.
Reduce production risk. Improve sealing performance. Deliver repeatable quality.
Ⅺ：Custom Cylinder Components: Comparing Key Design Approaches
When engineering high-performance cylinders, selecting the right ring structures is essential for cost, durability, and function. From locking rings to welded collars and lightweight aluminum neck rings, each configuration delivers unique benefits for different industries. At PRIME, we specialize in custom cylinder components, offering technical consultation to help you select the optimal ring design and manufacturing approach.
Threaded Locking Rings: Secure and Service-Friendly
Threaded lock rings provide reliable axial retention while allowing easy disassembly for maintenance. Ideal for hydraulic systems requiring frequent seal access.
- High retention strength: Prevents end cap or gland movement under pressure.
- Precision thread machining: Ensures leak-tight fit and ease of assembly.
- Versatile usage: Common in agricultural and heavy-duty equipment cylinders.
Best Applications:
Hydraulic lift systems, excavators, farming machinery, industrial actuators.
Welded Neck Rings: Strong, Sealed, and Compact
Welded cylinder collars or neck rings are permanently affixed for superior structural integrity and leak prevention. They’re often used in harsh environments and high-pressure systems.
- Space-saving: No extra thread clearance required.
- High strength: Fully fused welds resist vibration and pressure cycling.
- Lower manufacturing complexity: No threading or machining on cylinder body required.
Best Applications:
Construction cylinders, compact hydraulic actuators, sealed pneumatic systems, mining equipment.
Comparison Table: Threaded vs. Welded vs. Lightweight Rings
| Feature | Threaded Ring | Welded Ring | Aluminum Ring |
|---|---|---|---|
| Retention Strength | High | Very High | Moderate |
| Weight | Heavy | Moderate | Lightweight |
| Maintenance Access | Excellent | Limited | Moderate |
| Manufacturing Cost | Higher | Moderate | Low |
| Suitability for High Pressure | Excellent | Excellent | Limited |
PRIME’s Cylinder Ring Manufacturing Expertise
PRIME delivers fully customized cylinder rings and collar components with precision threading, welding, and finishing options tailored to your pressure, space, and lifecycle requirements.
Contact our engineering team to discuss your exact needs — from neck ring selection to manufacturing optimization for custom cylinder builds.
Ⅻ：Global Supply Chain & Logistics for Custom Cylinder Components
When sourcing custom hydraulic or pneumatic cylinder components such as threaded locking rings, welded neck collars, lightweight aluminum retainer rings, and integrated cylinder collars, global delivery performance is critical. PRIME supports worldwide buyers with reliable supply chain services — ensuring your precision parts arrive on time, intact, and hassle-free.
Buyer Concern
“How do I ensure my custom cylinder components are protected, pass customs, and delivered on schedule — even in complex international supply chains?”
End-to-End Logistics for Cylinder Rings & Assemblies
From component sourcing to export packaging and freight forwarding, Prime offers complete logistics solutions tailored to your project’s location, volume, and delivery urgency.
1. Documentation & Compliance Expertise
- HS Code Selection: Optimized for cylinder-specific parts like locking rings and mounting collars.
- Customs Paperwork: Full documentation including engineering drawings, compliance certifications, and packing specs.
- Global Trade Ready: We ensure your goods meet EU, NAFTA, GCC, and APAC import requirements.
2. Custom Packaging for Ring & Collar Assemblies
Each shipment is tailored to part type and fragility:
- Foam-padded trays: For precision-machined locking rings with thread integrity protection.
- Vacuum-sealed VCI: Prevents corrosion on lightweight aluminum collars during transit.
- Stackable crates: Used for larger steel neck collars with welded flanges.
3. Freight Options Fit for Cylinder Parts
- Air Freight: For urgent tooling samples or pilot production runs.
- Sea Freight: Best for bulk shipments of standardized mounting ring sets.
- Hybrid Modes: Rail + sea or air + truck for mixed-volume orders.
4. Real-Time Visibility & Predictability
Get tracking from pallet pickup to factory delivery, including live ETAs and proactive communication if anything changes.
5. Strategic Stock & Regional Hubs
For OEMs and contract buyers, Prime provides stocking of standard-size locking rings or aluminum collars in strategic warehouses for faster lead time replenishment and production continuity.
Streamline Delivery for Your Cylinder Components
Let Prime manage every detail of your global supply chain — so you receive high-quality, ready-to-use cylinder parts on time, every time.
XIII：Prime R&D and Innovation: Advancing Cylinder Component Engineering
In the evolving world of industrial hydraulic systems, innovation is critical to meet rising performance expectations. For B2B buyers, working with a supplier that invests in R&D ensures better material efficiency, greater component lifespan, and technical competitiveness. At Prime, our R&D focuses on optimizing design, improving welding and thread-lock technologies, and exploring lightweight solutions for custom cylinder assemblies.
Buyer Concern: Will this supplier be capable of developing next-generation cylinder components that fit my application, industry regulations, and cost targets?
1. Specialized Material Exploration
We continuously test advanced materials such as lightweight aluminum alloys and high-strength steels to enhance the performance and durability of locking rings, welded collars, and neck rings. Our research allows us to deliver solutions optimized for aerospace, medical, and marine-grade applications.
2. Welding and Thread-Locking Innovation
Our teams are improving automated welding methods and thread locking techniques for precision-fit collars and retaining rings. Innovations include:
Laser-guided orbital welding
Anti-backlash thread ring designs
Seam strength and fatigue resistance modeling
3. Lightweight Design for Efficiency
We actively develop lighter yet stronger cylinder accessories, including aluminum neck rings and optimized wall-thickness components. This improves system energy efficiency without compromising structural performance in mobile and aerospace systems.
4. Custom-Fit Engineering Support
Our R&D team collaborates directly with customers to co-develop components that meet unique size, pressure, and sealing requirements. Whether your need is for a single prototype or full-scale production, we turn ideas into engineered products ready for market.
PRIME’s Innovation Advantage:
Partner with a manufacturer that is shaping the future of hydraulic cylinder componentry. From advanced locking systems to sustainable lightweight materials, Prime delivers custom innovation built to last.
Learn MoreXIV：Value-Added Services: Integrated Cylinder Component Solutions
For B2B buyers sourcing hydraulic or pneumatic cylinder components, working with a partner who offers complete services — from forming and welding to precision machining and surface treatment — reduces supplier complexity and ensures consistent quality. PRIME provides full-process solutions for all types of cylinder collars, rings, and mounting components.
Buyer Concern
“I’m not just buying a ring — I need welding, machining, and sometimes anodizing or coating. Managing multiple vendors delays timelines and creates quality inconsistencies. Can I consolidate with one supplier?”
PRIME’s Solution
From prototype to full-scale production, we handle every step of your cylinder component manufacturing — ensuring tight tolerances, traceable quality, and reliable delivery. Our deep capabilities cover various collar types and fastening features across industries like construction, automation, and fluid power.
1. Precision Machining for Cylindrical Rings
- Threaded Lock Rings: High-precision threading and internal grooves for O-rings or snap rings.
- Aluminum Lightweight Collars: CNC turned and milled with strict weight control for aerospace or mobile machinery.
- Bore Tolerances: Grinding and honing for ID precision and sealing integrity.
2. Collar & Flange Welding Assembly
We fabricate complete collar structures with integrated base plates, ports, or support arms:
- MIG & TIG Welding: For thick-wall rings and mounting flanges.
- Jig-Based Welding: To maintain flatness, concentricity, and fixture alignment.
- Custom Socket or Mount Integration: According to your drawing or port design.
3. Kitting, Labeling & Customized Export Packaging
- Component Set Assembly: Rings, bolts, seals, and end caps packaged together by SKU.
- Protective Packaging: Foam-inserts, shrink wrap, and corrosion-resistant bags for long transit times.
- Barcode & Part ID: Ensures smooth receiving and warehouse scanning on client side.
4. Heat Treatment & Surface Processing
- Quenching & Tempering: Improves fatigue resistance for high-pressure ring collars.
- Anodizing or Black Oxide: For aluminum and steel collar surfaces.
- Anti-corrosion Coating: Marine or offshore grade finishes available.
5. Final Cleaning, Inspection & Deburring
- Deburring & Surface Finishing: Including vibratory finishing and manual chamfering.
- Cleanroom-Compatible Cleaning: For medical or fluid-control cylinder components.
- SPC Inspection: Statistical monitoring of key dimensions and fit tolerances.
The PRIME One-Stop Cylinder Component Advantage
With PRIME as your full-service partner, you eliminate fragmented sourcing and receive fully processed, precision-verified cylinder assemblies.
Whether it’s a locking ring for earthmoving equipment or a lightweight flange collar for robotics, we ensure total reliability from metal to final shipment.
Materials
| Alloy Steel | Carbon Steel |
| Stainless Steel | Aluminum Alloys |
| Copper & Brass | High-Strength Lightweight Metals |
Finishing
| Anodizing | Powder Coating |
| Electroplating | Black Oxide |
| Sand Blasting | Polishing & Buffing |
| Heat Treatment | Surface Hardening |
XV: More Information On Custom Cylinder Components
Explore our full range of custom metal components for hydraulic and pneumatic cylinder assemblies, including neck collars, lock rings, aluminum weight-saving collars, and welded flange collars — precision-built for durability and performance.
Production Method
- Precision CNC Turning
- TIG/MIG Welding for Collars
- Thread Rolling for Locking Rings
- 3D Milling for Weight-Reducing Grooves
- Laser Cutting for Port Integration
- Custom Jig-Based Welding
In Summary
Selecting the right custom cylinder component supplier goes far beyond comparing unit prices. This guide has covered key considerations in engineering, machining, and finishing of precision parts like threaded lock rings, welded neck collars, and lightweight aluminum retaining rings. Long-term success depends on choosing a partner who supports your innovation and production goals.
Key Takeaways for B2B Buyers
- Precision is Paramount: Cylinder neck rings and locking collars require tight tolerances, perfect roundness, and secure thread profiles. Choose a supplier with CNC, turning, and threading expertise.
- Specialized Finishing: Heat treatment, surface hardening, and corrosion-resistant coatings are critical for durability. Ensure your supplier can deliver consistent metallurgical quality.
- Material Innovation: Lighter, stronger materials like 6061-T6 aluminum or high-tensile stainless are key to performance and weight savings in cylinders.
- Integrated Services: Seek partners who handle design consultation, prototyping, welding, assembly, and packaging under one roof.
- Global Support: Reliable export logistics, certifications, and responsive service are non-negotiable for international buyers.
Why PRIME Stands Out
PRIME delivers the reliability global engineers demand for mission-critical cylinder parts. Our 30+ years of manufacturing experience, ISO 9001:2015 certification, and advanced CNC/robotic integration ensure quality, repeatability, and scalability.
From the first design sketch to the final assembly-ready ring or neck weldment, we partner with you through every step—bringing engineering insights, full traceability, and guaranteed on-time delivery.
Global Reach, Local Touch
With 10+ precision machining lines and a customer base across North America, Europe, and the Middle East, PRIME is ready to scale alongside your business. We handle export documentation, customs clearance, and packaging—so your custom cylinder parts arrive on time, every time.
Discover how PRIME’s full-scope manufacturing can help you shorten lead times, improve reliability, and reduce lifecycle cost.
Your Next Step
If you're sourcing custom cylinder neck rings, locking collars, or welded retaining structures, let PRIME provide you with a detailed feasibility analysis, material suggestion, and a fast quote within 24 hours.
Let’s manufacture success—together.
Get a Quote NowJust a Few of the Partners Who Trust Our Quality
*Logos are property of their respective owners.
What Our Customers Say
Real feedback from global buyers who trust us to deliver high-quality, customized industrial components.
Harry M., New York
Purchasing Manager – Metal Components
We’ve sourced CNC machined parts from Prime for over two years. The precision is consistently excellent, tolerances are spot on, and their team is responsive and professional. Fast lead times and secure packaging make them a reliable long-term partner.
Robert J., California
Strategic Sourcing Specialist – Industrial Hardware
The forged components we received from Prime were top quality — strong material integrity, accurate dimensions, and zero defects. Their team understood our specs clearly and delivered right on schedule. Great supplier for high-stress applications.
Emily T., Texas
Supply Chain Buyer – Custom Metal Parts
We ordered a batch of custom metal welded assemblies from Prime, and the quality was outstanding. The welds were clean, uniform, and met all our strength requirements. Communication was smooth, and delivery was faster than expected.
Hannah K., Ontario
Senior Buyer – Automotive
Prime supplies us with custom metal casting parts that meet strict automotive standards. Their ISO-certified quality, fast prototyping, and on-time delivery make them a trusted partner in our supply chain.
Luis R., Barcelona
Procurement Lead – Electronics
Prime has been a reliable partner for our custom plastic parts in consumer electronics. The injection-molded components are precise, durable, and always delivered on time, helping us stay competitive in the market.
Nadia P., Dubai
Category Manager – Industrial Projects
Prime delivers high-quality custom metal forgings for our industrial machinery. The parts are strong, reliable, and meet our exact specifications. With consistent quality and on-time delivery, Prime has become a trusted partner in our long-term projects.
Jon S., Munich
Operations Buyer – Machinery
Prime’s custom metal fasteners have proven to be durable and precise, perfectly fitting our heavy-duty machinery. Their consistent quality and reliable delivery help us maintain smooth production with fewer interruptions. Prime is a supplier we can count on for critical components.
Aisha M., Sydney
Sourcing Manager – Energy
From quoting to final inspection, Prime stayed on schedule with transparent updates. Their QC reports, salt spray results, and traceability made onboarding very smooth.
Get Your Custom Solution & Quote
REPLY WITHIN 24 HOURS
Start a Conversation with Our Experts
When you contact us, you get more than just a price. You get a dedicated partner.
- ✔ 30+ Years of Manufacturing Excellence, Direct from Our Factory
- ✔ Custom-Engineered Solutions for Your Needs
- ✔ Global Shipping & Logistics Support
- ✔ A Transparent, No-Obligation Quote
- ✔ 100% Confidentiality Guaranteed
Your email information will be kept strictly confidential and our business staff will ensure that your private information is absolutely safe!
